Hot Dip Galvanized Guardrail Bolts: Key Points Before Bulk Ordering

Guardrail systems are widely used on roads, highways, bridges, parking areas, farms, and industrial sites. In these outdoor environments, bolts are exposed to rain, dust, humidity, temperature changes, and long-term vibration. For this reason, many buyers choose hot dip galvanized guardrail bolts instead of plain or lightly plated fasteners.

Before placing a bulk order, buyers should not only compare unit price. Size, coating, nut matching, washer requirement, packing, and project standards can all affect installation and service life. This article explains the key points buyers should confirm before ordering hot dip galvanized guardrail bolts in large quantities.

What Are Hot Dip Galvanized Guardrail Bolts?

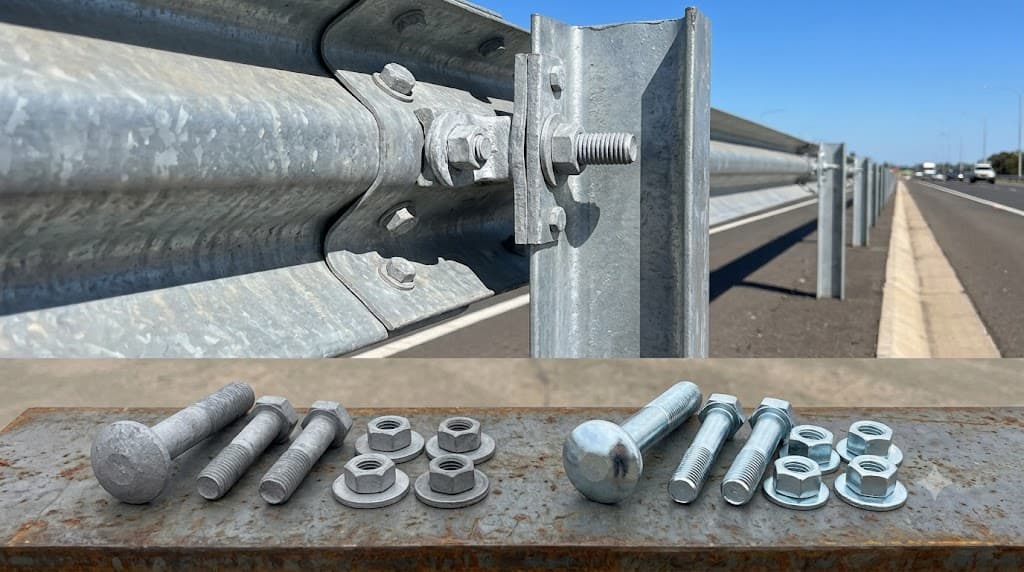

Hot dip galvanized guardrail bolts are bolts used to connect guardrail beams, posts, brackets, and related accessories. The bolts are coated with a thick zinc layer through the hot dip galvanizing process, which helps protect the steel from corrosion in outdoor environments. Compared with zinc plated bolts, hot dip galvanized bolts usually provide better corrosion resistance for exposed applications. This makes them suitable for highway guardrails, roadside barriers, farm fencing, bridge guardrails, and other outdoor safety structures. Common guardrail bolt types may include:

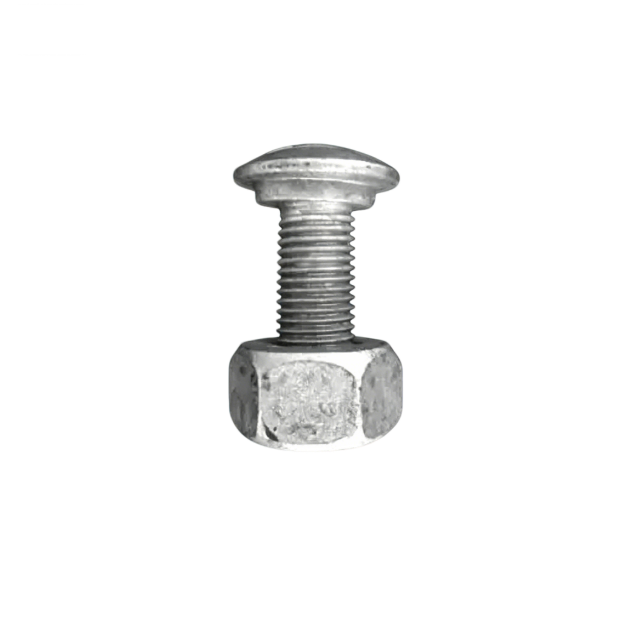

• Round head guardrail bolts
• Splice bolts
• Post bolts
• Carriage-type bolts
• Hex bolts for brackets
• Matching nuts and washers

Different projects may use different bolt head styles, thread lengths, and standards, so buyers should confirm the exact requirements before ordering.

1. Confirm the Bolt Size and Thread

The first thing to confirm is the bolt size. Guardrail bolts are often used in large quantities, so even a small size mistake can create installation problems on site. Buyers should confirm:

• Diameter
• Length
• Thread length
• Thread pitch
• Head style
• Shank type
• Full thread or partial thread

If the bolt will pass through guardrail beams, posts, or brackets, the length must match the total thickness of all connected parts. If the bolt is too short, the nut may not engage properly. If it is too long, installation may be inconvenient and may increase cost.

For replacement orders, buyers can provide a sample photo, drawing, or existing bolt specification to avoid confusion.

2. Check the Standard or Drawing

Guardrail bolts may follow different standards depending on the market and project. Some buyers use standard guardrail splicing bolts, while others need customized bolts based on project drawings.

Before bulk ordering, buyers should confirm whether the bolts must follow:

• A national or regional road safety standard
• A customer drawing
• A project specification
• A previous sample
• A common DIN, ISO, ASTM, or ANSI fastener standard

For road and highway projects, the bolt is not just a general fastener. It is part of a safety system. Therefore, the standard, dimensions, and coating should be confirmed carefully before production.

If the buyer is not sure about the standard, it is better to send the drawing, sample photo, or installation position for supplier checking.

3. Confirm the Coating: Hot Dip Galvanized or Zinc Plated

Many buyers simply write “galvanized guardrail bolts” in an inquiry. However, galvanized may refer to different surface treatments.

For outdoor guardrail systems, hot dip galvanized coating is commonly preferred because it provides better long-term corrosion resistance than normal zinc plating.

Buyers should clearly state:

• Hot dip galvanized or zinc plated
• Required zinc coating thickness if specified
• Whether the nuts and washers also need hot dip galvanizing
• Whether the project has corrosion resistance requirements
• Whether the fasteners will be used near coastal or humid areas

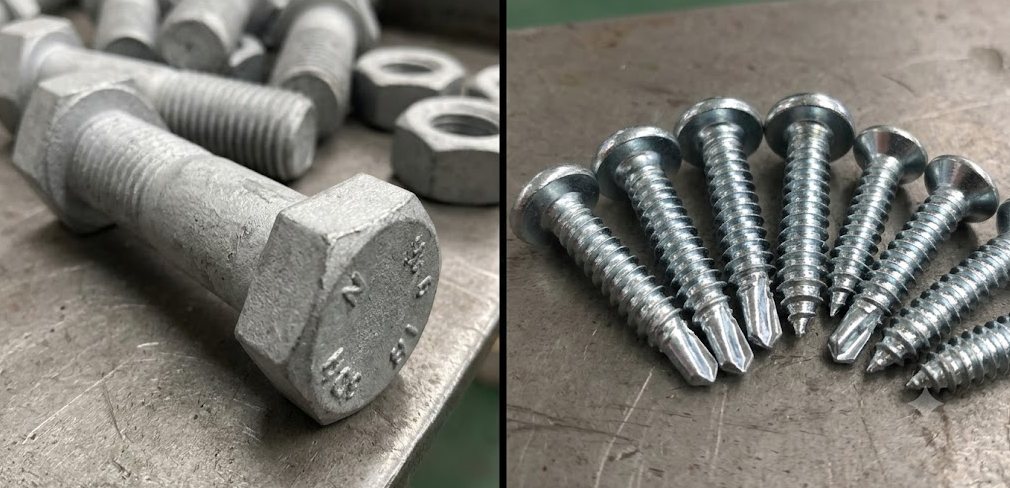

Hot dip galvanized bolts may have a matte gray or silver-gray surface. They may not look as bright as zinc plated bolts, but the thicker coating is more suitable for outdoor use.

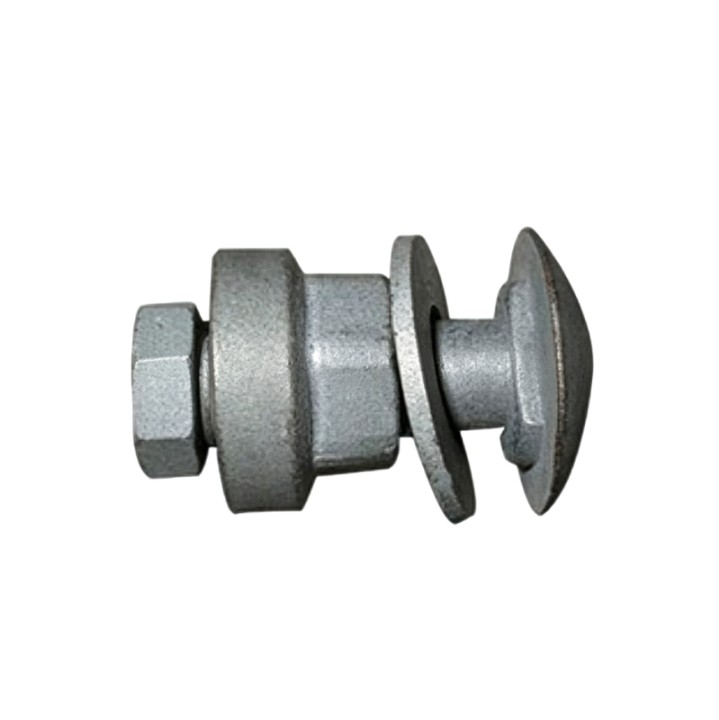

4. Match the Correct Nuts and Washers

For guardrail installation, bolts are rarely used alone. They are usually matched with nuts and sometimes washers.

When ordering hot dip galvanized guardrail bolts, buyers should confirm:

• Nut type
• Nut size
• Thread compatibility
• Washer type
• Washer size and thickness
• Whether washers are required on one side or both sides
• Whether all parts need the same surface treatment

Thread fit is especially important for hot dip galvanized fasteners. Because the zinc coating is thicker, the nut must be suitable for the galvanized bolt thread. If plain nuts or incorrect nuts are used, installation may become difficult.

For bulk orders, it is better to order bolts, nuts, and washers as a matched set.

5. Consider the Application Environment

Not all guardrail projects have the same corrosion risk. A guardrail used in a dry inland area may have different requirements from one installed near the sea, in a rainy region, or in an industrial area.

Buyers should consider:

• Is the project outdoor or indoor?
• Is the installation area humid or coastal?
• Will the bolts contact mud, water, or de-icing salt?
• Is long-term corrosion resistance required?
• Is the project for highway, farm, bridge, parking lot, or industrial site?

This information helps the supplier recommend the suitable coating, packing, and fastener combination.

6. Check Strength Grade and Material

Guardrail bolts need enough strength to support the system during normal use and installation. Buyers should confirm the required material and strength grade before ordering.

Common information includes:

• Carbon steel material
• Strength grade
• Hardness requirement
• Standard requirement
• Testing or inspection documents
• Mill test certificate if needed

If the bolts are for a specific project, the buyer should follow the project specification. If the bolts are for general stock or resale, the buyer should still define a stable specification to avoid mixed quality from different batches.

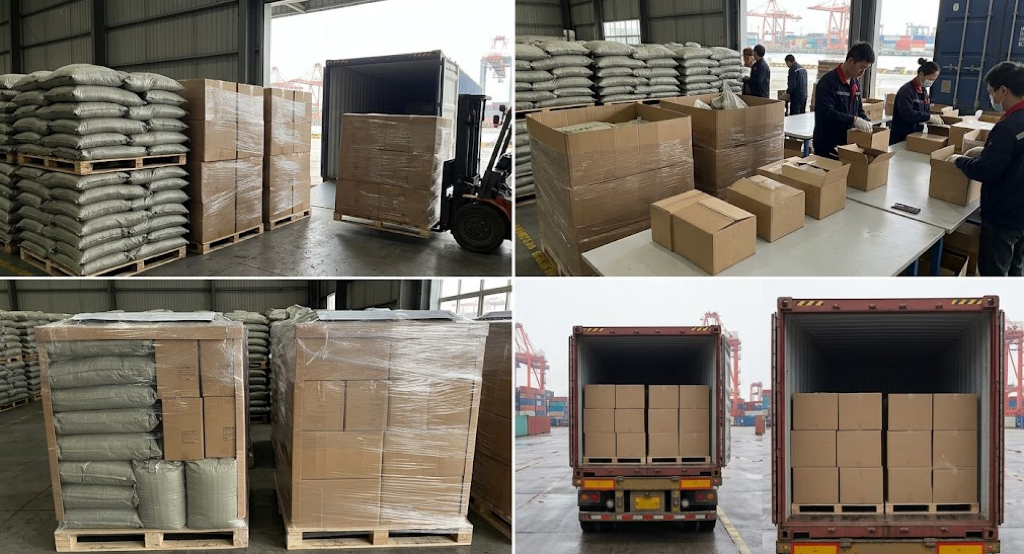

7. Pay Attention to Packing for Bulk Orders

Guardrail bolts are often ordered in large quantities, so packing is important for shipping, storage, and installation.

Buyers should confirm:

• Bulk packing or small box packing
• Carton, woven bag, pallet, or wooden case
• Label requirements
• Mixed packing with nuts and washers or separate packing
• Protection against moisture during sea shipment
• Whether the cargo needs easy counting at the job site

Good packing can reduce damage, rust risk, and confusion during installation. For importers and distributors, clear labels and stable packing also make warehouse management easier.

8. Provide Complete RFQ Information

To receive an accurate quotation, buyers should provide clear information at the beginning. A complete inquiry can save time and reduce back-and-forth communication.

When requesting a quote for hot dip galvanized guardrail bolts, buyers should provide:

• Product name
• Bolt size and length
• Thread size and thread length
• Head style
• Standard or drawing
• Material or strength grade
• Surface treatment
• Nut and washer requirements
• Quantity
• Packing requirements
• Destination port or delivery address
• Application or project type
• Photos or samples if available

If the buyer only asks for “guardrail bolt price” without details, the supplier may not be able to quote accurately.

Conclusion

Hot dip galvanized guardrail bolts are important fasteners for outdoor guardrail and road safety systems. Before bulk ordering, buyers should confirm the size, standard, coating, nut and washer matching, strength grade, application environment, and packing requirements.

Choosing the correct guardrail bolts can help improve installation efficiency, reduce corrosion problems, and avoid project delays.

If you are sourcing hot dip galvanized guardrail bolts, splice bolts, nuts, washers, or complete guardrail fastener sets, please send us your size, drawing, standard, quantity, coating requirement, and packing details.

Our team can help check the suitable fastener solution for your project.
