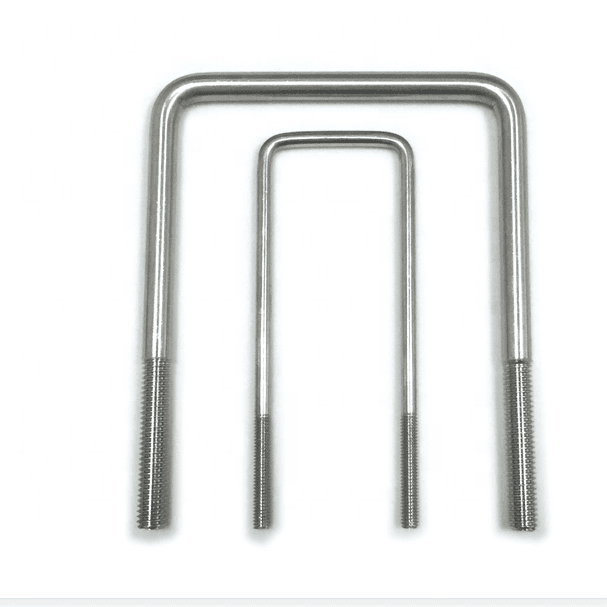

M4-M12 Stainless Steel SS304 J-Type Foundation Bolt and U-Bolt for Construction
This product is a stainless steel J‑type foundation bolt and U‑type bolt pipe clamp designed for embedded fastening, structural fixing and pipe support applications. It is available in metric thread sizes from M4 to M12, making it suitable for small equipment, brackets, concrete foundation assemblies and pipe‑clamping structures.
The J‑shaped design can be embedded into concrete or used with structural supports to create a secure anchoring point. The U‑shaped version is suitable for clamping pipes, tubes, conduits and other cylindrical components to support frames or mounting bases. Stainless steel construction provides a clean appearance and is suitable for projects where corrosion resistance and long‑term service are important considerations.
Specification Table
| Item | Product Information |
|---|---|
| Product Type | J‑type foundation bolt and U‑type bolt pipe clamp |
| Material | Stainless steel |
| Core Strength Grade | Class 10 |
| Additional Listed Grade Options | A2‑70, A2‑80 and A4‑80 |
| Thread Size | M4, M5, M6, M8, M10 and M12 |
| Length Options | 12 mm, 14 mm, 16 mm and 20 mm |
| Surface Finish | Plain or polishing |
| Application | Building and construction |
| Quality Certification | ISO9001 listed |
| Place of Origin | Hebei, Handan, China |
Surface Treatment Options
Plain Finish
The plain finish retains the basic stainless steel surface and is suitable for general construction fastening, embedded anchor assemblies and applications where the fastener will be covered or installed in a protected position.
Polishing
The polished finish provides a smoother and brighter surface appearance. It is suitable for visible installations, equipment supports, architectural structures and projects where a cleaner visual finish is preferred.
Surface treatment should be selected according to the installation environment, appearance requirements and the type of connected material.
Application
Embedded Foundation Connections
The J‑type foundation bolt can be positioned in concrete foundations to create a fixed threaded connection for steel plates, base frames, brackets and support structures.

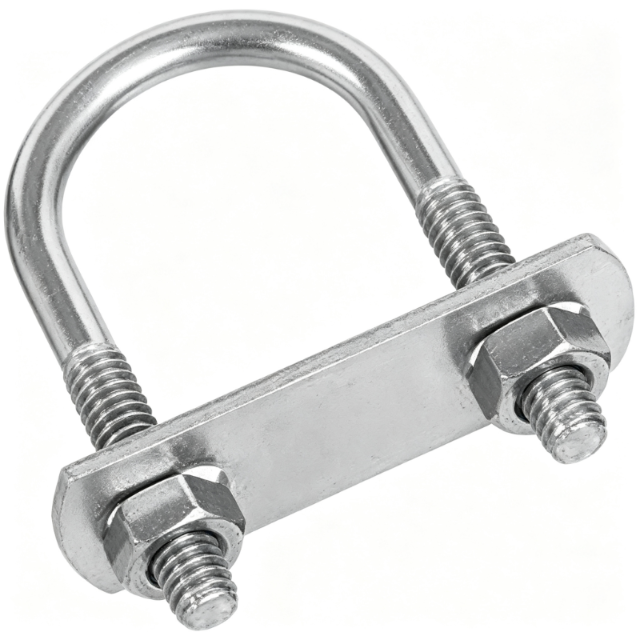

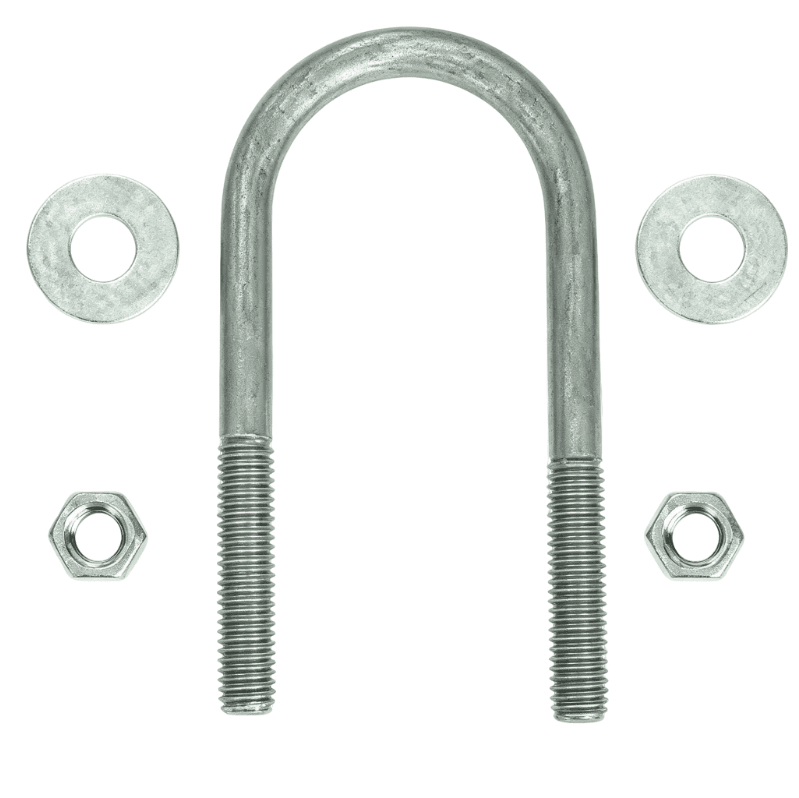

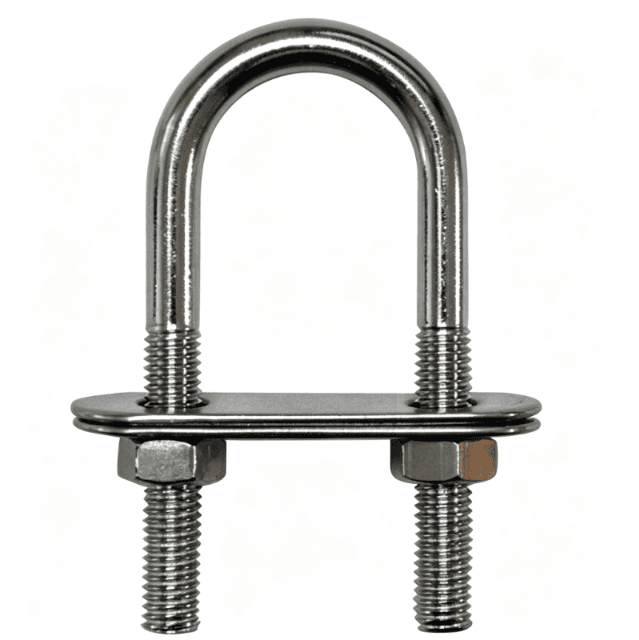

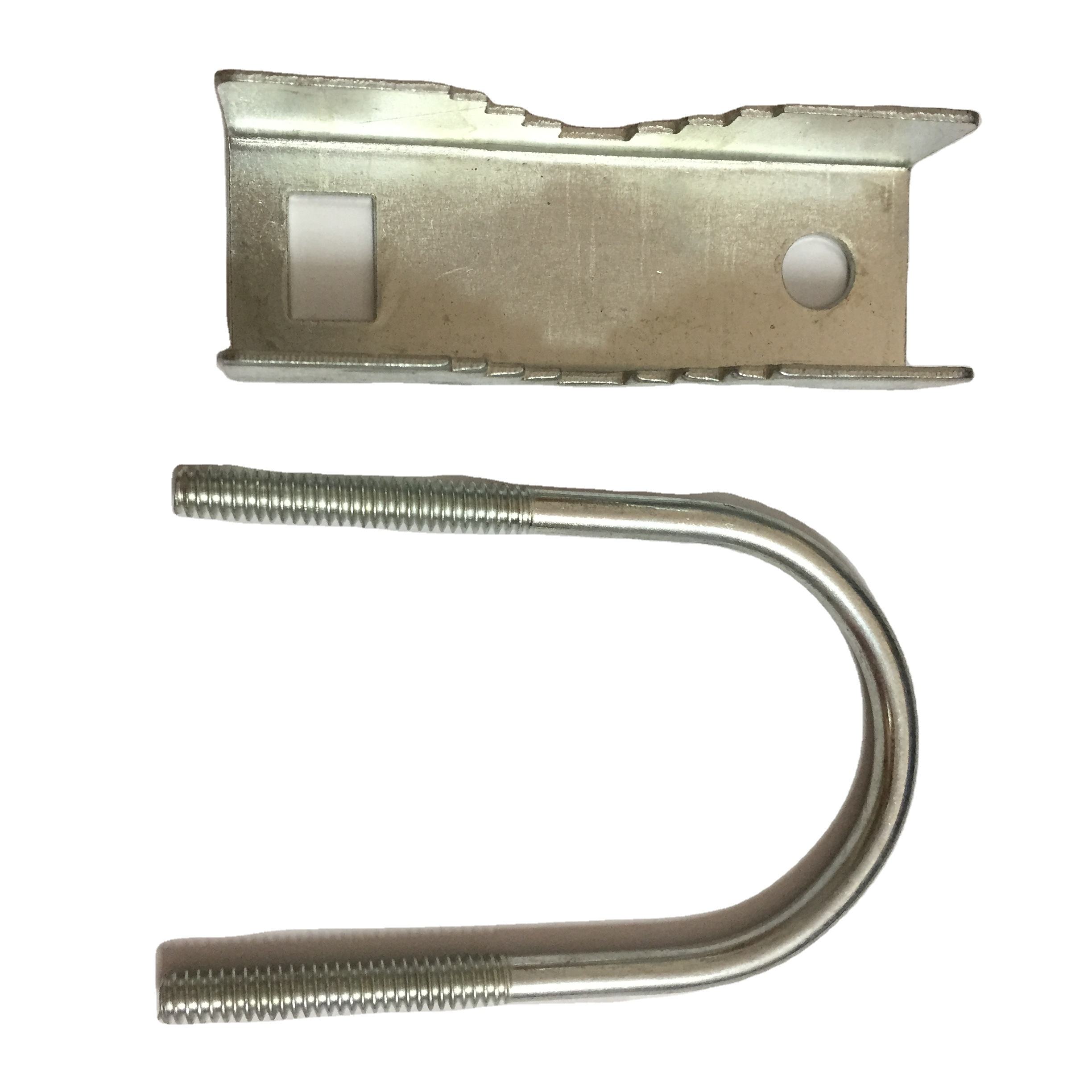

Pipe Support and Clamping
The U‑type bolt pipe clamp can be used to hold pipes, tubes, conduits and cables against support channels, frames or mounting plates. Matching nuts and washers help secure the pipe clamp during installation.
Equipment Anchoring
The bolts can be used for fixing equipment bases, machinery frames, light structural components and support brackets where metric threaded anchoring is required.
Construction and Structural Installation
These fasteners are suitable for building construction, concrete support assemblies, metal frames, mounting brackets and general structural fastening projects.
Workshop and Fabrication Projects
The M4‑M12 size range supports smaller fabrication work, custom brackets, pipe racks, frames and maintenance assemblies requiring compact stainless steel anchor components.
Matching Fasteners
| Product Size | Suggested Matching Fasteners | Typical Use |
|---|---|---|
| M4 | M4 hex nut, flat washer and spring washer | Small brackets and light assemblies |
| M5 | M5 hex nut, flat washer and spring washer | Equipment panels and support fixtures |
| M6 | M6 hex nut, flat washer and spring washer | General mounting and small pipe supports |
| M8 | M8 hex nut, flat washer and spring washer | Structural brackets and equipment bases |
| M10 | M10 hex nut, flat washer and spring washer | Foundation supports and pipe frames |
| M12 | M12 hex nut, flat washer and spring washer | Heavy support assemblies and anchoring |
For J‑type foundation bolts, a matching nut and washer set can be used to fasten base plates, brackets and structural supports. For U‑type pipe clamps, the selected nuts and washers should match the pipe diameter, mounting plate thickness and installation load.
Packing & Delivery
The fasteners can be packed in woven bags or standard cartons and arranged on pallets for bulk shipment. The reference package size is 30 × 30 × 20 cm with a reference gross weight of 25 kg.
Packing can be selected according to the product size, order quantity, shipping method and customer handling requirements. Customized logo, packaging and graphics can be discussed for bulk orders.
Delivery time depends on the selected thread size, length, grade option, surface treatment and order quantity. Samples can be discussed before a larger production order when size, finish or installation compatibility needs to be checked.
The final packing plan and shipping schedule should be confirmed before order placement.
FAQ
1.What material is used for this foundation bolt?
The product is identified as stainless steel, and SS304 is specified in the product name and detailed product description.
2.What strength grades are available?
Class 10 is shown in the core product attributes. The detailed product information also lists A2‑70, A2‑80 and A4‑80. Please confirm the required grade before ordering.
3.What sizes are available?
The available thread sizes are M4, M5, M6, M8, M10 and M12. Length options include 12 mm, 14 mm, 16 mm and 20 mm.
4.What is the difference between the J‑type and U‑type versions?
The J‑type bolt is intended for embedded anchoring and foundation fastening. The U‑type version is shaped for pipe, tube and conduit clamping.
5.Can the surface finish be customized?
The listed surface options are plain and polishing. Other requirements should be discussed according to the order quantity and production conditions.
6.Can the packaging be customized?
Customized logo, packaging and graphics can be discussed for qualified bulk orders.
7.What fasteners are used with the bolts?
Matching metric nuts, flat washers and spring washers can be selected according to the thread size from M4 to M12.
---
Send us your required size, length, product type, grade option, surface finish and order quantity.
