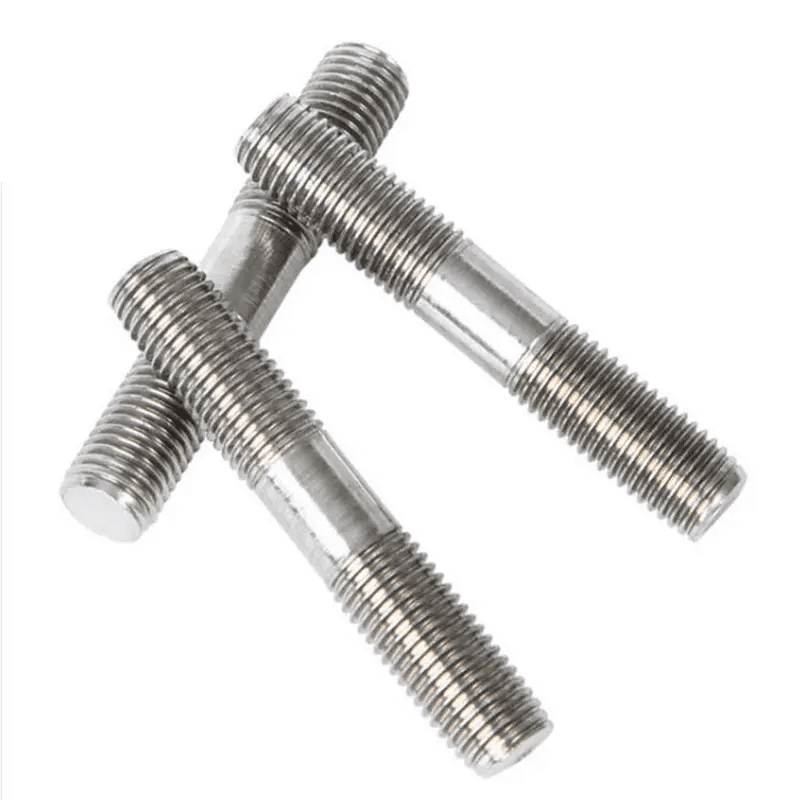

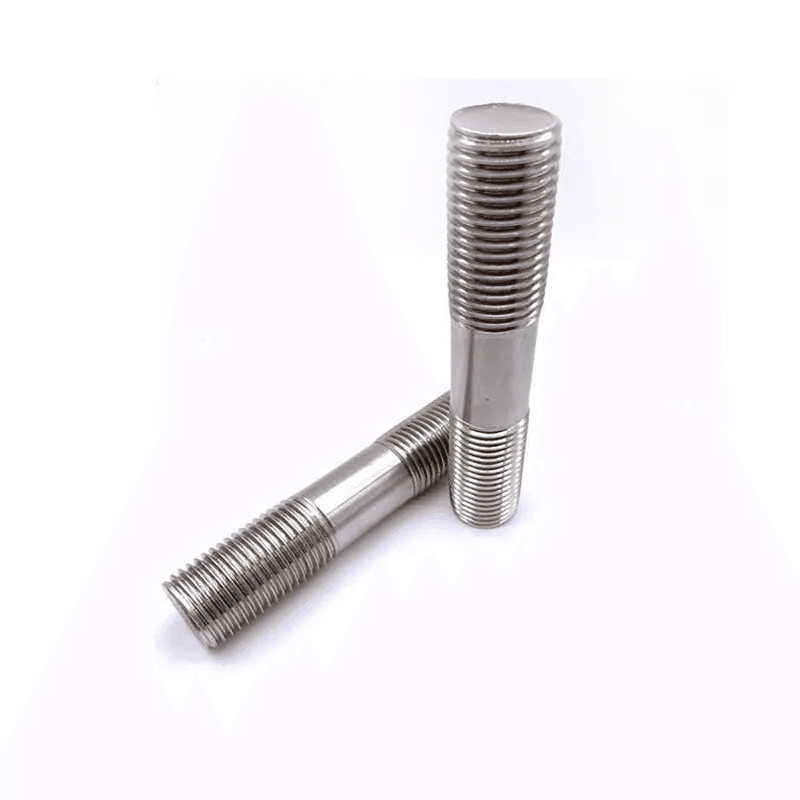

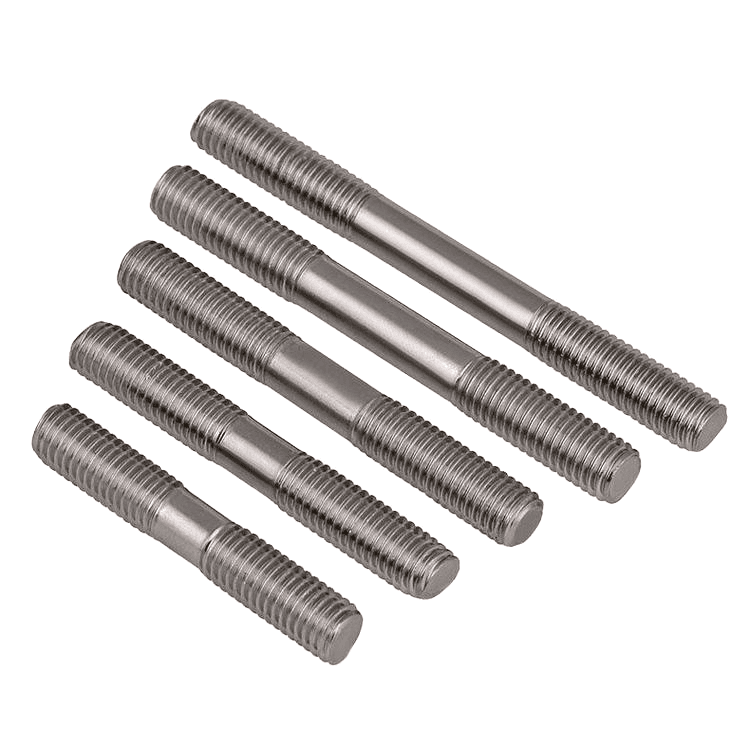

Custom Size M10 Stainless Steel Double Ended Stud Bolt, Class 10 DIN Hex Threaded Fastener with UNC Thread
This custom‑size double ended stud bolt is manufactured from stainless steel for industrial fastening, equipment assembly and construction applications. The threaded design on both ends allows the fastener to connect components through matching nuts, washers, brackets, flanges and threaded sleeves.
Specification Table
| Specification | Product Information |
|---|---|
| Product Name | Threaded stud bolts |
| Material | Stainless steel |
| Strength Grade | Class 10 |
| Standard | DIN |
| Thread Type | UNC |
| Head Type | Hex |
| Size Range | M6‑M52 |
| Additional Sizes | Available according to customization requirements |
| Length Options | 12 mm, 14 mm, 18 mm, 20 mm, 30 mm, 50 mm and 60 mm |
| Surface Treatment | Plain, passivation or zinc |
| Application | Industrial fastening, machinery and construction |
| Origin | Hebei, Handan, China |
Surface Treatment Options
Plain Finish
The plain finish provides the natural stainless steel surface and is suitable for projects that require further processing, coating or a clean metal appearance. It can also be used in controlled indoor assemblies.
Passivated Finish
Passivation is suitable for stainless steel fastening applications where improved surface stability and corrosion resistance are required. It can be used for equipment assembly, machinery parts and industrial fastening systems.
Zinc Finish
The zinc surface option provides a treated metallic finish for general fastening applications. It can be selected when the project requires a zinc surface or a specific appearance.
The final surface treatment should be selected according to the stainless steel specification, working environment, assembly method and customer requirements.
Application
This stainless steel double ended stud bolt can be used in a wide range of applications, including:
- Industrial machinery assembly
- Equipment mounting
- Construction fastening
- Mechanical component connections
- Bracket installation
- Flange and support assembly
- Industrial frame construction
- Maintenance and repair work
- Threaded sleeve installation
- Production line equipment
- Stainless steel structure assembly
- General‑purpose threaded fastening
The double ended configuration is useful when a component needs to be fixed between two threaded connection points. The stud bolt can be installed through a plate, flange, bracket or equipment part and tightened with matching nuts and washers.
The hex head supports installation with a wrench or socket. For equipment exposed to moisture, chemicals or outdoor conditions, the stainless steel material and passivated surface option can be considered according to the project environment.
Matching Fasteners
| Stud Bolt Size | Matching Components |
|---|---|
| M6 | M6 nuts, flat washers, spring washers and threaded sleeves |
| M8 | M8 nuts, flat washers, spring washers and threaded sleeves |
| M10 | M10 nuts, flat washers, spring washers and threaded sleeves |
| M12 | M12 nuts, flat washers, spring washers and threaded sleeves |
| M16 | M16 nuts, flat washers, spring washers and threaded sleeves |
| M18 | M18 nuts, flat washers, spring washers and threaded sleeves |
| M20 | M20 nuts, flat washers, spring washers and threaded sleeves |
| M22 | M22 nuts, flat washers, spring washers and threaded sleeves |
| M24 | M24 nuts, flat washers, spring washers and threaded sleeves |
Use matching nuts and washers with the same nominal thread size and compatible UNC thread requirements. Flat washers can distribute the clamping force across the connected surface. Spring washers or other locking components can be used where additional resistance to loosening is required.
For stainless steel assemblies, the nut and washer material should be selected for compatibility with the stainless steel stud bolt and the application environment.
Packing & Delivery
The product is listed with a reference package size of 45 × 38 × 15 cm and a reference gross weight of 15 kg. Packing can be arranged according to the selected length, size, order quantity and transportation method.
Available services include:
- Bulk packing for industrial orders
- Customized packaging
- Customized logo service
- Graphic customization
- Drawing‑based production
- Sample‑based production
- OEM and ODM manufacturing
- Sample service according to product availability
- Delivery arrangement based on order specifications
The standard minimum order quantity shown is 5 tons. Customized logo, packaging and graphic services are listed from 4 tons.
FAQ
Q1: What material is this stud bolt made from?
The product is made from stainless steel.
Q2: What strength grade is listed?
The listed strength grade is Class 10.
Q3: What is the main product size?
The product title highlights M10.
Q4: What size range is available?
The listed size range is M6‑M24, with M6, M8, M10, M12, M16, M18, M20, M22 and M24 displayed.
Q5: What thread type is shown?
The listed thread type is UNC.
Q6: What standard is listed?
The product attributes list DIN.
Q7: What surface treatments are available?
The listed options are plain, passivation and zinc.
Q8: What lengths are available?
The listed length options include 12 mm, 14 mm, 18 mm, 20 mm, 30 mm, 50 mm and 60 mm.
Q9: Which nuts and washers can be used?
Use matching nuts, flat washers, spring washers and threaded sleeves with the same nominal size and compatible UNC thread requirements.
Q10: Can the size be customized?
Yes. The product supports drawing‑based, sample‑based and requirement‑based customization.
Q11: What is the minimum order quantity?
The listed minimum order quantity is 5 tons. Customized logo, packaging and graphic services are shown from 4 tons.
Q12: Where is the product supplied from?
The product is supplied from Hebei, Handan, China.
---
Send us your required thread size, length, surface treatment, quantity and packaging requirements.
