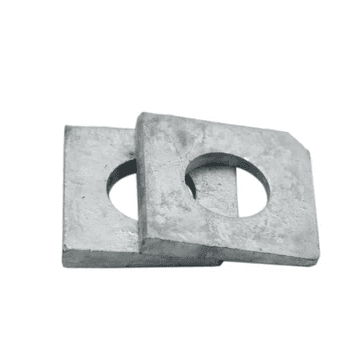

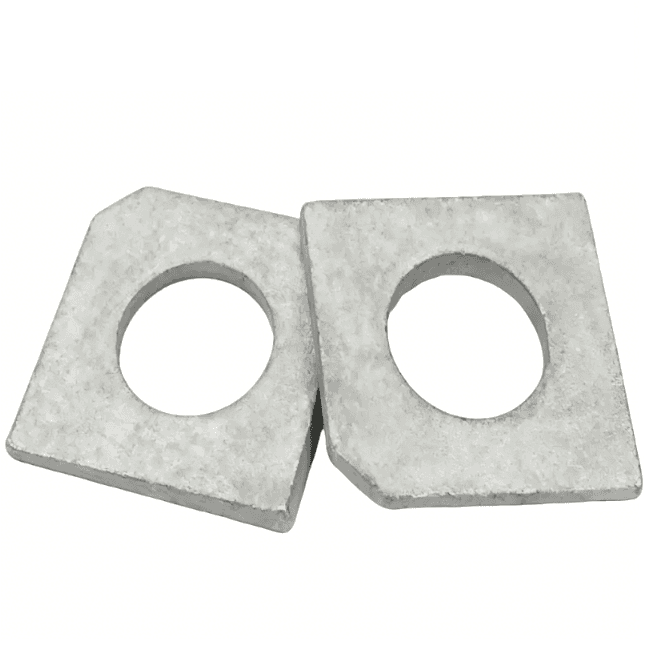

Heavy-Duty HDG Square Beveled Washers for Structural Beams (DIN 434 / 435)

When bolting structural steel frameworks together, ironworkers frequently need to secure connections through the inner flanges of I-beams or U-channels. These flanges are not flat; they are cast with a specific sloped angle. If you try to tighten a structural nut and bolt against this slope using a standard flat washer, the bolt will bend, creating massive stress concentration and inevitable joint failure.

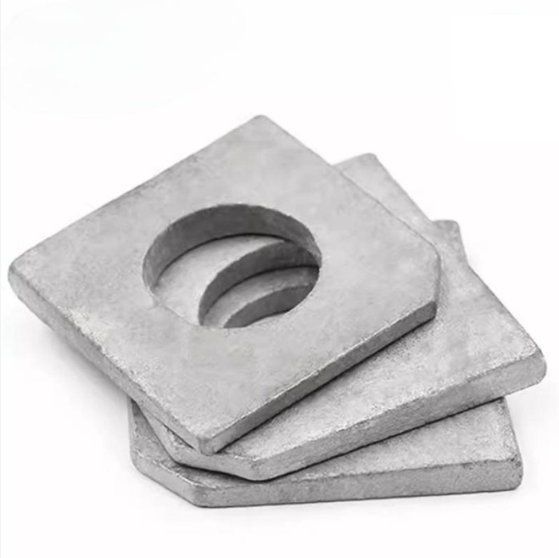

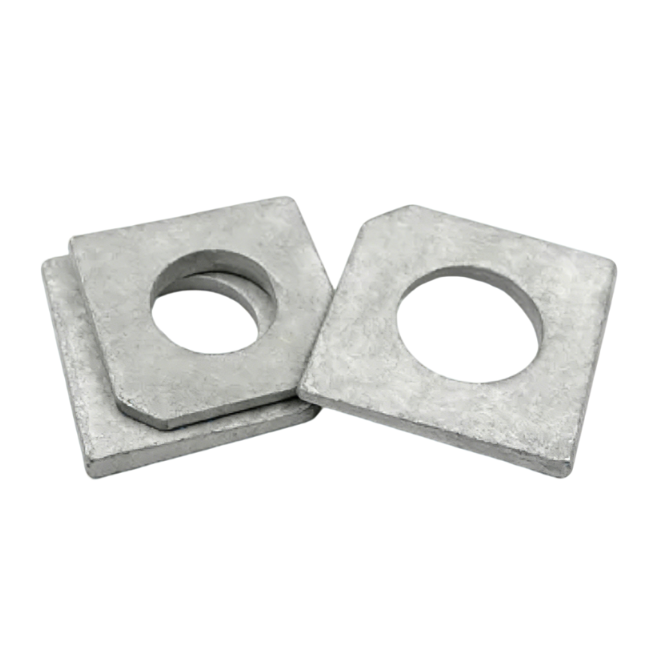

Square Beveled Washers are the engineered solution to this problem. Featuring an angled face that exactly neutralizes the slope of the beam, they provide a perfectly flat, parallel bearing surface for the bolt head and nut. More importantly, the square shape provides a straight edge that butts directly against the vertical web of the beam, completely preventing the washer from spinning when high torque is applied.

As a direct fastener manufacturer located in China's industrial hardware hub, Hotop Fasteners produces high-strength Hot Dip Galvanized (HDG) Square Beveled Washers. Stamped from solid carbon steel and coated with a thick, heavy-duty zinc-iron alloy (typically 50μm to 85μm), our washers ensure your structural connections remain straight, tightly torqued, and completely safe from outdoor atmospheric corrosion.

Why Choose HDG Square Beveled Washers from Hotop Fasteners?

1.The "Square" Anti-Rotation Advantage

Why use a square beveled washer instead of a round one? In heavy steel erection, ironworkers use heavy-duty pneumatic or electric impact wrenches. A round washer can spin during this high-speed tightening, galling the galvanized surface. The straight edges of our square beveled washers are designed to sit flush against the inner wall (web) of the steel channel. This physically locks the washer in place, allowing for fast, one-wrench installation on the job site.

2.Precision Taper Matching (8% vs. 14%)

We don't just guess the angle. We manufacture our square washers to exact international structural standards to ensure zero gaps under the bolt head:

• DIN 434 (8% Slope): Specifically designed with a gentler taper to match standard U-profile channels.
• DIN 435 (14% Slope): Specifically designed with a steeper taper to match the aggressive inner angle of standard I-beams.

3.Direct China Factory Process (No Zinc Spikes)

We are a real manufacturing facility, not a trading desk. We punch these washers on our own heavy-tonnage stamping presses. Before they ever see the molten zinc bath, we mechanically tumble them in bulk to remove all sharp stamping burrs. This crucial step guarantees that the final hot dip galvanized coating is smooth and uniform, with no razor-sharp "zinc spikes" that could cut a worker's hands or interfere with the nut seating.

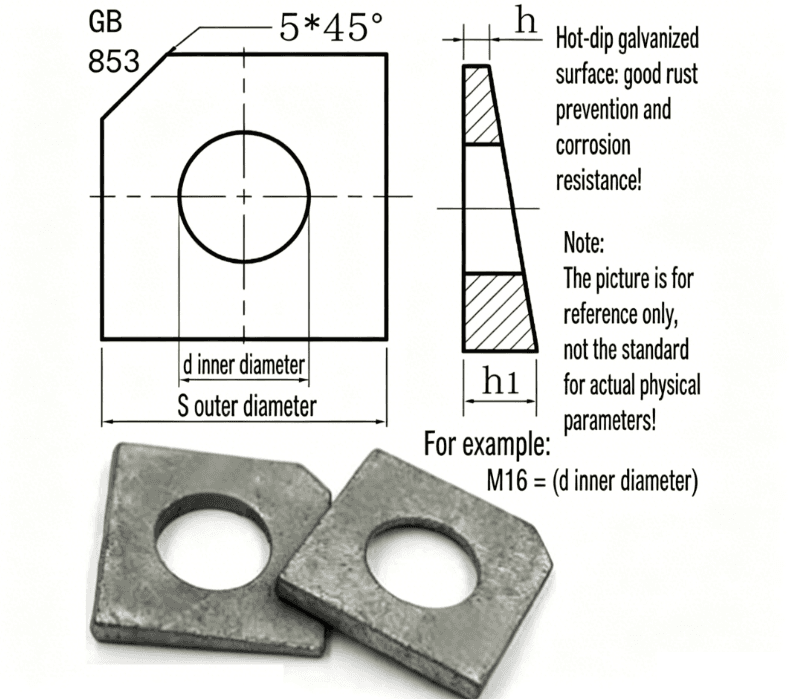

Product Specifications

Core Engineering Applications

Industrial Steel Frameworks & Warehouses

When assembling the main load-bearing I-beams and C-channels of warehouses, power plants, and factories, HDG square beveled washers are mandatory. They ensure diagonal cross-bracing bolts are properly aligned and torqued to maximum capacity without bending the fastener shank.

Overhead Crane Runways

Crane runway beams undergo extreme dynamic loads, heavy vibration, and side-to-side thrust. Hardened HDG square beveled washers ensure the structural supports remain rigidly clamped without loosening over time, while the heavy zinc coating prevents rust in unheated industrial facilities.

Bridge and Highway Overpasses

Used extensively in bridge girder splices where heavy hex structural bolts must pass through the sloped flanges of massive steel I-beams. The ASTM A153 HDG coating provides the decades of sacrificial rust protection required by government infrastructure projects.

Authentic Export Packaging (20GP Optimized)

Square beveled washers are small but extremely dense and heavy. Poor packaging leads to broken boxes and rusted cargo before the ship even clears the port. At Hotop Fasteners, our logistics are designed for the realities of heavy sea freight.

• Pre-Galvanizing Clearance Sizing: Because HDG adds significant thickness, we punch the inner holes of our washers slightly oversized. This ensures your galvanized structural bolts will slide through effortlessly on-site.

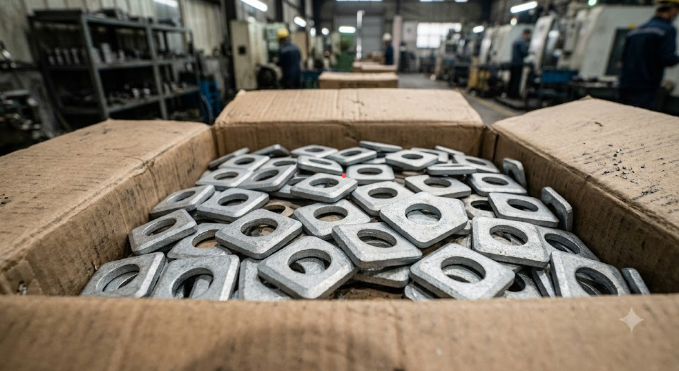

• Moisture-Proofing: The washers are bulk-packed into heavy-duty, double-corrugated export cartons (max 25kg/box). Inside every carton, the washers are completely sealed within a thick PE plastic bag to block ocean humidity and "container rain."
• Secure Palletization: The cartons are compactly stacked onto fumigation-free plywood pallets, tightly bound with high-tension green PET strapping, and wrapped in industrial stretch film. This maximizes the dense payload of a standard 20GP shipping container and guarantees safe forklift handling at your warehouse.

----

Stop dealing with bent structural bolts and trading company markups. Secure your steel framing with precision-stamped, heavily galvanized square beveled washers direct from the manufacturer.

Send the Hotop Fasteners team your required beam type (I-beam or U-channel), standard (DIN 434/435), bolt sizes, material hardness requirements, and total project quantities. We will provide a transparent commercial quotation and an export shipping breakdown within 24 hours.
