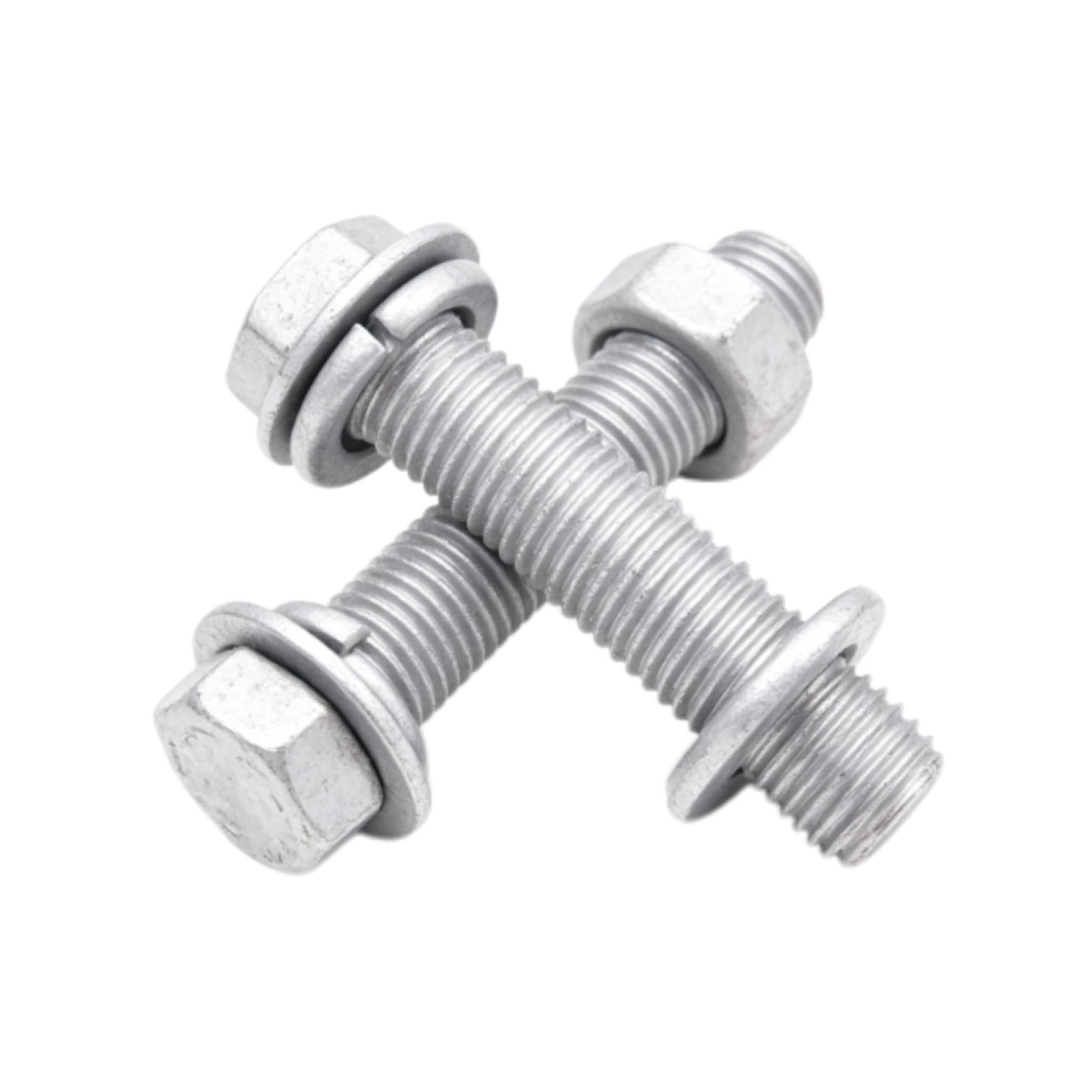

Made-to-Print Custom HDG Fasteners & Structural Hardware

Standard off-the-shelf fasteners cannot solve every engineering challenge. Heavy infrastructure, custom heavy machinery, and specialized steel structures frequently require non-standard dimensions, unique head shapes, hybrid threading, or complex bent profiles.

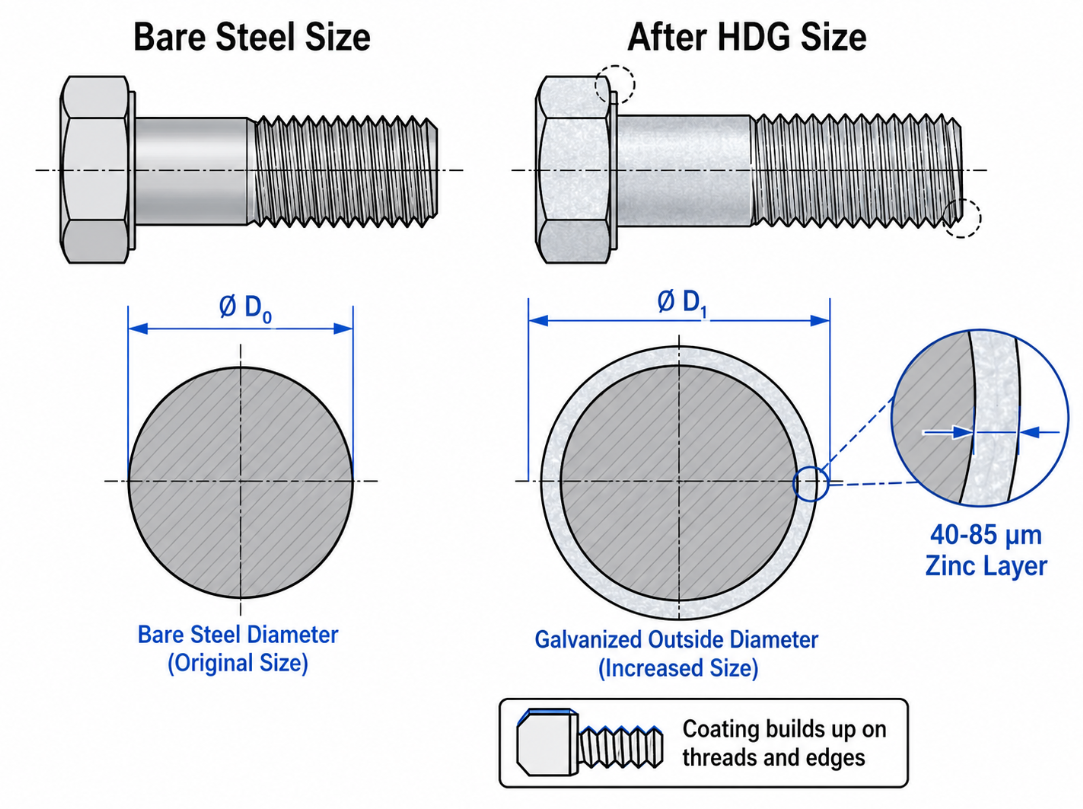

However, manufacturing a custom fastener is only half the battle; protecting it from severe outdoor corrosion is the real challenge. Hot dip galvanizing (HDG) adds a thick zinc-iron alloy layer (typically 40μm to 85μm) to the steel. If a factory simply machines a custom part to exact drawing dimensions and then hot dip galvanizes it, the zinc buildup will ruin the tolerances, shrink the holes, and jam the threads, rendering the custom part useless on site.

At Hotop Fasteners, we specialize in Made-to-Print HDG Fasteners. Our engineering team calculates the exact pre-galvanizing dimensional allowances required for your specific design. Through integrated CNC machining, hot/cold forging, and strict HDG process control, we ensure your custom structural hardware fits perfectly while delivering decades of reliable rust protection.

Why Choose Hotop Fasteners for Custom HDG Projects?

• Dimensional Allowance Engineering: We don't just blindly follow the final drawing. Our engineers calculate the precise undersize (for external threads/shafts) or oversize (for internal threads/holes) needed before dipping the part in molten zinc. This ensures the final galvanized product matches your exact engineered tolerances.
• Hydrogen Embrittlement Prevention: Custom high-strength fasteners (Grade 10.9 or higher) are highly susceptible to hydrogen embrittlement during the pickling and galvanizing process, which can lead to sudden, catastrophic snapping under load. We implement strict de-embrittlement baking protocols immediately following the coating process to guarantee structural safety.
• Integrated Manufacturing: From CNC turning and milling to heavy-duty hot forging and thread rolling, we handle the entire fabrication process in-house. This allows us to control the quality of the raw steel before it ever touches the zinc bath.
• First Article Inspection (FAI): For custom projects, we produce and galvanize a small sample batch for your engineering team to verify and test before we initiate bulk production.

Product Specifications & Manufacturing Capabilities

Common Types of Custom HDG Hardware We Manufacture

Because we work from your blueprints, the possibilities are virtually limitless. However, these are the most frequently requested custom HDG components:

1.Specialty Anchor Bolts (J-Bolts, L-Bolts, Welded Plates)

Standard anchor bolts often don't match the embedment depth or pull-out resistance required by complex concrete foundations. We manufacture custom bent or plate-welded anchor systems, fully hot dip galvanized to survive highly corrosive soil and groundwater.

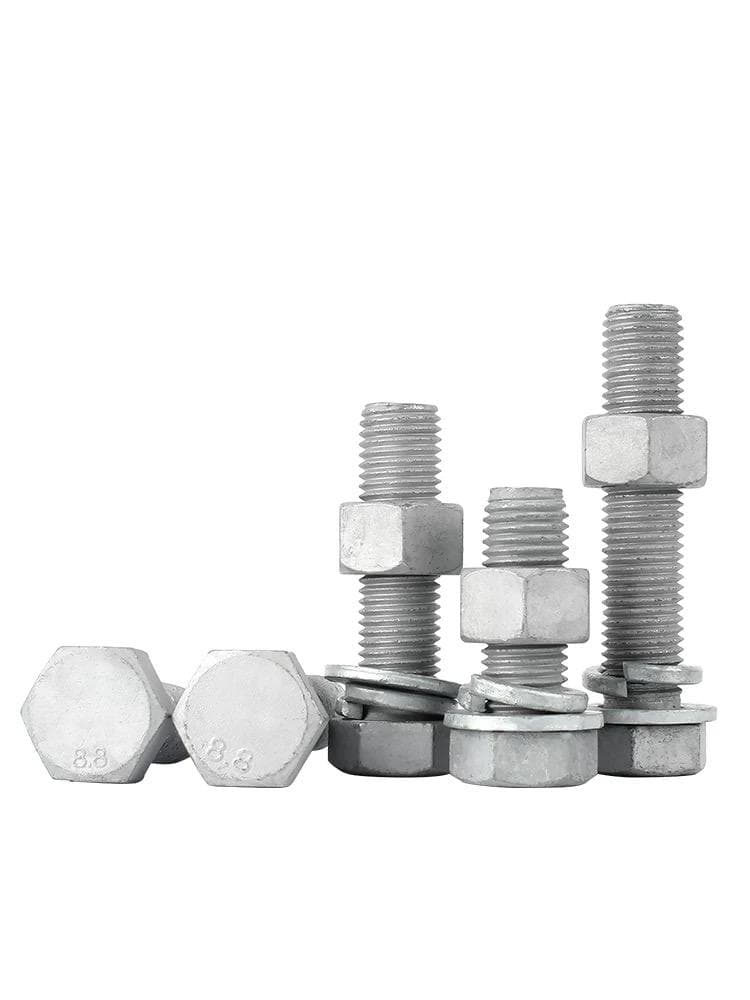

2.Non-Standard Structural Bolts

This includes extra-long hex bolts, step-bolts (with varying shaft diameters), square head bolts for traditional timber framing, and bolts with non-standard thread pitches or partial threading tailored to specific shear planes.

3.Custom U-Bolts, V-Bolts, and Pipe Clamps

For massive industrial pipe racks or unique solar tracking tubes, we bend custom U-bolts and plate brackets to your exact inner diameter (ID) and leg lengths, ensuring zero micro-cracking at the bend after galvanizing.

4.Heavy Clevis Pins and Structural Rods

Used in bridge joints, crane rigging, and heavy machinery, these thick, unthreaded or partially threaded pins require precise smooth-shank tolerances that must be carefully protected from zinc-pooling during the HDG process.

How to Prepare Your Inquiry for an Accurate Quote

To bypass miscommunication and receive a fast, accurate technical quotation from our team, please ensure your inquiry includes the following:

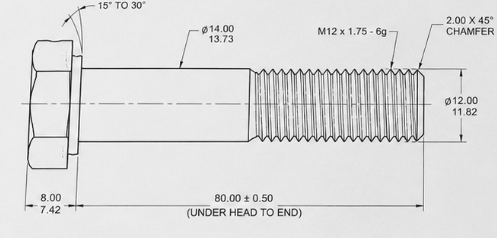

1. Clear Engineering Drawings: Provide PDF files with clear dimensional callouts and tolerances. If complex, include a 3D STEP file.
2. Material and Grade: Explicitly state the required steel grade (e.g., 42CrMo, Grade 8.8) or mechanical properties (yield/tensile strength).
3. Coating Specification: Specify "HDG" and mention if your project requires a specific minimum zinc thickness (e.g., "Minimum 65μm" for coastal environments).
4. Critical Tolerances: Highlight which dimensions on the drawing are "critical" (e.g., a shaft that must fit perfectly into a bearing) so our engineers can calculate the zinc allowance carefully.
5. Quantity and Lead Time: Let us know your batch requirements, as this determines whether we use CNC machining (for small batches) or create a forging mold (for bulk economy).

Quality Control for Custom Fasteners

Standard fasteners rely on standard gauges. Custom fasteners require custom inspection. At Hotop Fasteners, our QC for made-to-print items includes:

• Pre-Galvanizing Measurement: Verifying the bare steel dimensions account for the calculated zinc buildup.
• Thread Verification: Using custom-machined Go/No-Go gauges if your design utilizes non-standard thread pitches.
• Assembly Testing: If you order a multi-part custom assembly (e.g., a custom bolt, overtapped nut, and stamped bracket), we physically assemble samples from the batch prior to packaging to ensure perfect rotational and sliding fit.

Export Packaging for Custom Hardware

Custom fasteners often have precision-machined surfaces or specialized threads that are more vulnerable to damage than standard bolts.

We do not use generic bulk packing for delicate custom parts. Threads are protected with plastic mesh netting. Heavy custom parts are packed in layered, heavy-duty cartons with internal dividers, sealed in PE moisture-proof bags, and locked down on fumigation-free wooden pallets or enclosed inside reinforced wooden crates for safe ocean freight.

Frequently Asked Questions

Do you require a Minimum Order Quantity (MOQ) for custom HDG fasteners?

MOQ depends entirely on the manufacturing process required. For CNC machined parts, we can accommodate low-volume orders. If the custom shape requires opening a new hot forging mold, a higher MOQ is necessary to make the unit price economical for you.

How long does it take to produce a custom fastener?

Typically, calculating the process, securing raw materials, and producing the First Article Inspection (FAI) sample takes 10 to 15 days. Once the sample is approved by your team, bulk production and hot dip galvanizing usually take 20 to 30 days, depending on the volume.

Can you overtap standard nuts to fit my custom-sized HDG bolts?

Yes. If your custom bolt requires nuts, we highly recommend allowing us to supply the overtapped nuts as well. We will tap the nuts to match the exact galvanized thread profile of your custom bolt, guaranteeing a perfect fit on site.

Request a Quote for Custom HDG Fasteners

Stop compromising your structural designs with standard hardware. If you have a blueprint, the Hotop Fasteners team has the engineering capability to manufacture and galvanize it.

Send your Drawings (PDF/STEP), Material Requirements, Coating Specifications, and Quantity to our engineering sales team today.

We will review your prints and provide a comprehensive manufacturing proposal and exact quotation.
