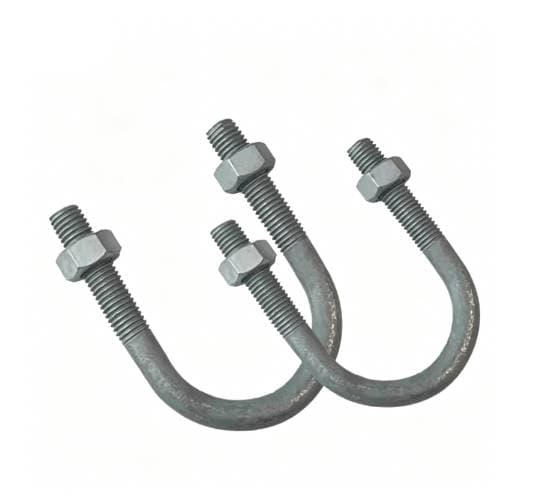

Custom Hot Dip Galvanized Round & Square U-Bolts

U-bolts are essential fasteners used primarily for supporting pipes, securing conduits, and clamping round or square steel profiles to structural frameworks. Unlike standard hex bolts, U-bolts are highly project-specific. The inner width, leg length, and thread length must perfectly match the outer diameter (OD) of the pipe and the thickness of the support beam.

Because pipe supports and structural clamps are frequently exposed to outdoor elements, chemical plants, or coastal moisture, standard zinc plating is not enough. Custom Hot Dip Galvanized (HDG) U Bolts provide a heavy-duty, metallurgically bonded zinc coating that ensures decades of corrosion resistance in harsh environments.

At Hotop Fasteners, we specialize in manufacturing custom HDG U-bolts according to your specific engineering drawings. From cold-bending precision to hot-forged heavy-duty clamps, we control the manufacturing and galvanizing process to ensure no micro-cracking occurs at the bend, and supply them with perfectly matched overtapped nuts and washers.

Why Choose Custom HDG U Bolts from Hotop Fasteners?

Precision Manufacturing to Your Drawings

Off-the-shelf U-bolts rarely fit complex industrial pipe systems. We manufacture strictly according to your specifications, ensuring the inside diameter (ID) perfectly hugs your pipe to prevent vibration and wear.

Advanced Bending & Galvanizing Control

Bending steel creates internal stress. If not handled correctly, the thick hot dip galvanized coating can flake off at the inner bend, or the steel itself can suffer from hydrogen embrittlement. We utilize controlled cold-bending for smaller diameters and hot-bending for large, high-strength U-bolts, ensuring structural integrity and a uniform HDG coating across the entire fastener.

Matched Thread Fit (Overtapped Nuts)

Because hot dip galvanizing adds significant thickness to the threads on both legs of the U-bolt, standard nuts will jam during installation. We supply our custom U-bolts as complete sets with overtapped heavy hex nuts and flat washers, guaranteeing a smooth, tool-friendly assembly on the job site.

Product Specifications

Critical Dimensions for Custom U-Bolts

To ensure we manufacture exactly what your project needs, buyers must provide 4 critical dimensions when requesting a custom U-bolt quote:

1. D (Thread Diameter): The thickness of the steel rod (e.g., M12, 1/2").
2. W (Inner Width): The distance between the inside of the two legs. This must match the Outer Diameter (OD) of your pipe or square tube.
3. L (Inner Length): The distance from the inside top of the U-curve to the tip of the threaded legs.
4. T (Thread Length): How much of the legs need to be threaded to accommodate the support structure, washers, and nuts.

Available Types of Custom HDG U Bolts

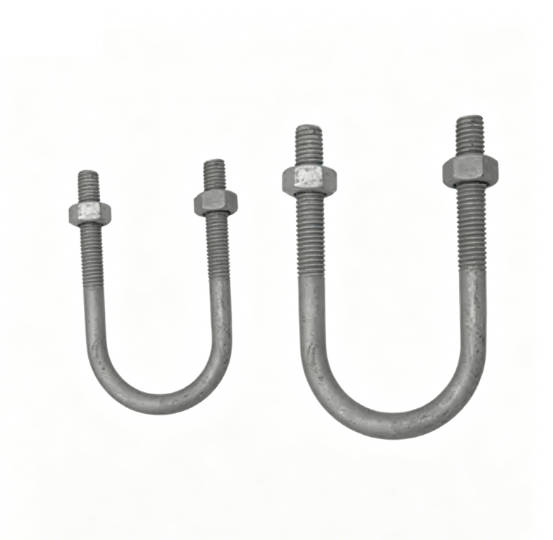

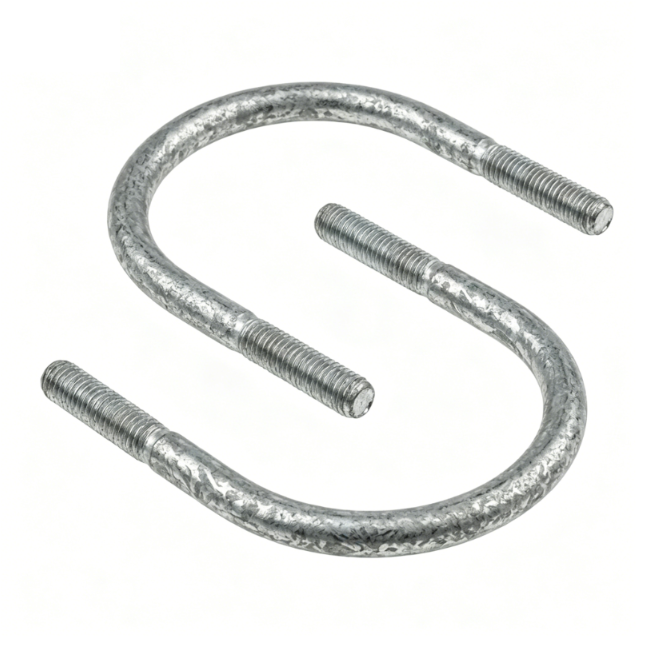

Round HDG U-Bolts (Pipe Clamps)

The most common type, designed with a semi-circular bend to hold round pipes, conduits, and tubing securely against metal or wooden beams. Widely used in industrial plumbing and oil/gas pipelines.

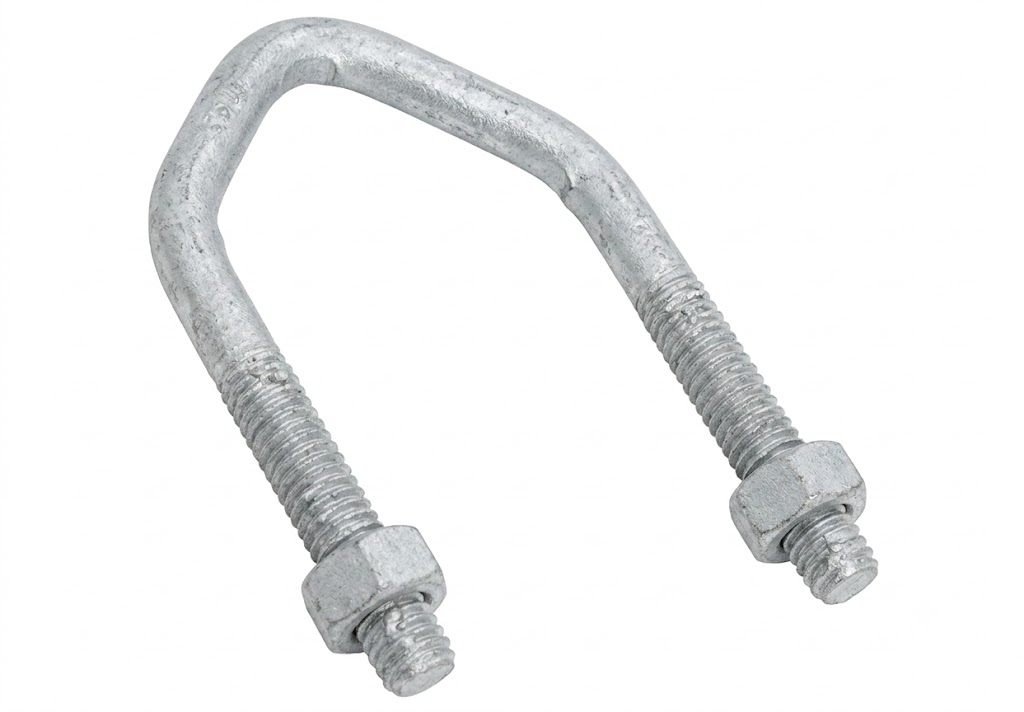

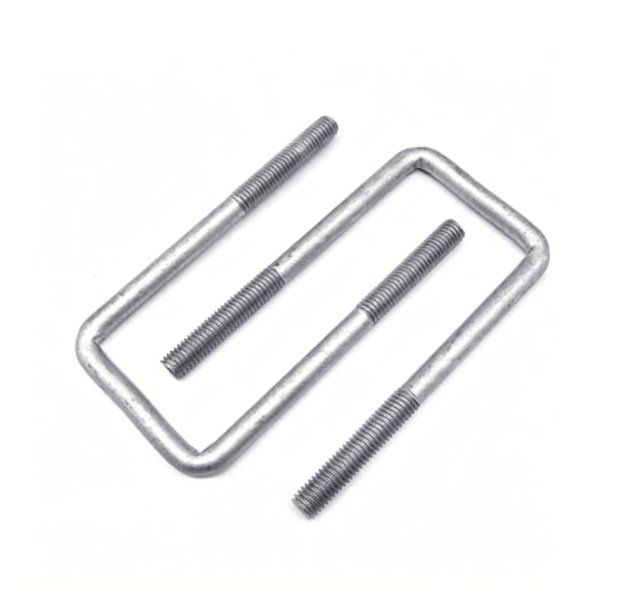

Square HDG U-Bolts

Designed with a flat 90-degree bend at the top. These are essential for clamping square steel tubing, securing solar panel mounting brackets, or fastening heavy equipment to square structural frames.

V-Bolts

Featuring a V-shaped bend, these are typically used to secure diamond-shaped profiles or to center a round pipe firmly within a specific bracket.

Applications

Industrial Pipe Supports

In petrochemical plants, water treatment facilities, and HVAC systems, HDG round U-bolts are the standard for suspending or anchoring heavy steel pipes. The thick zinc coating resists the corrosive industrial atmosphere.

Solar Mounting Systems

Solar farms are built in open fields or deserts. Square HDG U-bolts are frequently used to securely attach the solar panel framework to the main structural support posts, resisting high wind loads and outdoor corrosion.

Telecommunication Towers

Antennas and heavy cables are clamped to outdoor steel communication towers using HDG U-bolts. The hot dip galvanized finish ensures these hard-to-reach fasteners do not rust and compromise the tower's equipment.

Marine and Coastal Construction

For docks, piers, and coastal walkways, HDG U-bolts are used to secure wooden or steel pilings. The metallurgical bond of the zinc coating withstands high humidity and saltwater spray better than standard plating.

Quality Control and Export Packaging

At Hotop Fasteners, we do not compromise on the details.

• Bend Inspection: We inspect the U-curve for any signs of metal fatigue or zinc peeling.
• Thread Testing: A Chinese QC technician physically tests the overtapped HDG nuts on both legs of the U-bolt to ensure parallel thread engagement without jamming.

Packaging for Bent Fasteners

U-bolts require careful packaging because their irregular shape makes them prone to tangling and thread damage during sea freight.

• Smaller U-bolts are packed in heavy-duty cartons with moisture-proof plastic liners.
• Large, heavy-duty U-bolts are tightly bound in bundles, protected with thread netting or cardboard sleeves, and secured inside fumigation-free wooden cases to prevent shifting and physical impact in the shipping container.

Frequently Asked Questions

Can you manufacture U-bolts based on my hand-drawn sketch?

Yes. As long as you provide the 4 critical dimensions (Diameter, Inner Width, Inner Length, Thread Length) and specify the material grade, we can manufacture custom U-bolts for your project.

Are nuts and washers included with the U-bolts?

We highly recommend purchasing U-bolts as a complete set. We can supply the U-bolts pre-assembled with HDG overtapped nuts and washers, or packed separately in the same shipment, to guarantee thread compatibility.

Do you supply mounting plates (cross plates) for U-bolts?

Yes. For pipe support systems that require a secure base, we can stamp and punch custom carbon steel mounting plates and hot dip galvanize them to match your U-bolts.

Request a Quote for Custom HDG U Bolts

If your project requires custom dimensions, specific bending shapes, or reliable outdoor corrosion protection, the Hotop Fasteners team is ready to help.

Please send us your drawings, required dimensions (Diameter, Width, Length, Thread), strength grade, and quantity.

We provide precision manufacturing, strict thread-fit control, and export-ready packaging for all industrial pipe support and structural fastening needs.
