Hot Dip Galvanized Square Beveled Washers for I-Beams and Channel Steel: What Buyers Should Check

In steel structure projects, bolts are often installed through I-beams, channel steel, or other structural profiles with sloped surfaces. If a normal flat washer is used on an inclined surface, the bolt head or nut may not sit evenly. This can affect load distribution, installation quality, and long-term connection stability.

For these applications, many buyers use hot dip galvanized square beveled washers. These washers are designed with one sloped face to compensate for the angle of steel profiles. When used correctly, they help the bolt or nut seat more evenly on sloped structural surfaces.

Before placing a bulk order, buyers should confirm the washer slope, hole size, thickness, square size, bolt matching, coating, and application details. This article explains the key points buyers should check when sourcing HDG square beveled washers for I-beams and channel steel.

What Are Square Beveled Washers?

Square beveled washers are washers with a square outside shape and a sloped surface. Unlike flat washers, beveled washers are made to fit inclined surfaces, especially on structural steel sections.

They are commonly used with:

• I-beams
• Channel steel
• Structural columns
• Steel brackets
• Framing systems
• Outdoor steel structures
• Bridge and construction connections
• Heavy-duty bolted assemblies

The square shape provides a larger bearing area, while the beveled angle helps correct the slope between the bolt/nut and the steel surface.

Why Use Hot Dip Galvanized Beveled Washers?

Many I-beam and channel steel connections are used outdoors or in semi-exposed environments. In these conditions, corrosion resistance is important.

Hot dip galvanizing provides a thicker zinc coating than normal zinc plating, making the washer more suitable for outdoor use. HDG square beveled washers are commonly selected for:

• Outdoor steel structures
• Bridge and walkway connections
• Transmission or utility structures
• Industrial equipment frames
• Agricultural buildings
• Pipe rack structures
• Projects using hot dip galvanized bolts and nuts

For best corrosion resistance, buyers often use hot dip galvanized beveled washers together with hot dip galvanized bolts and nuts.

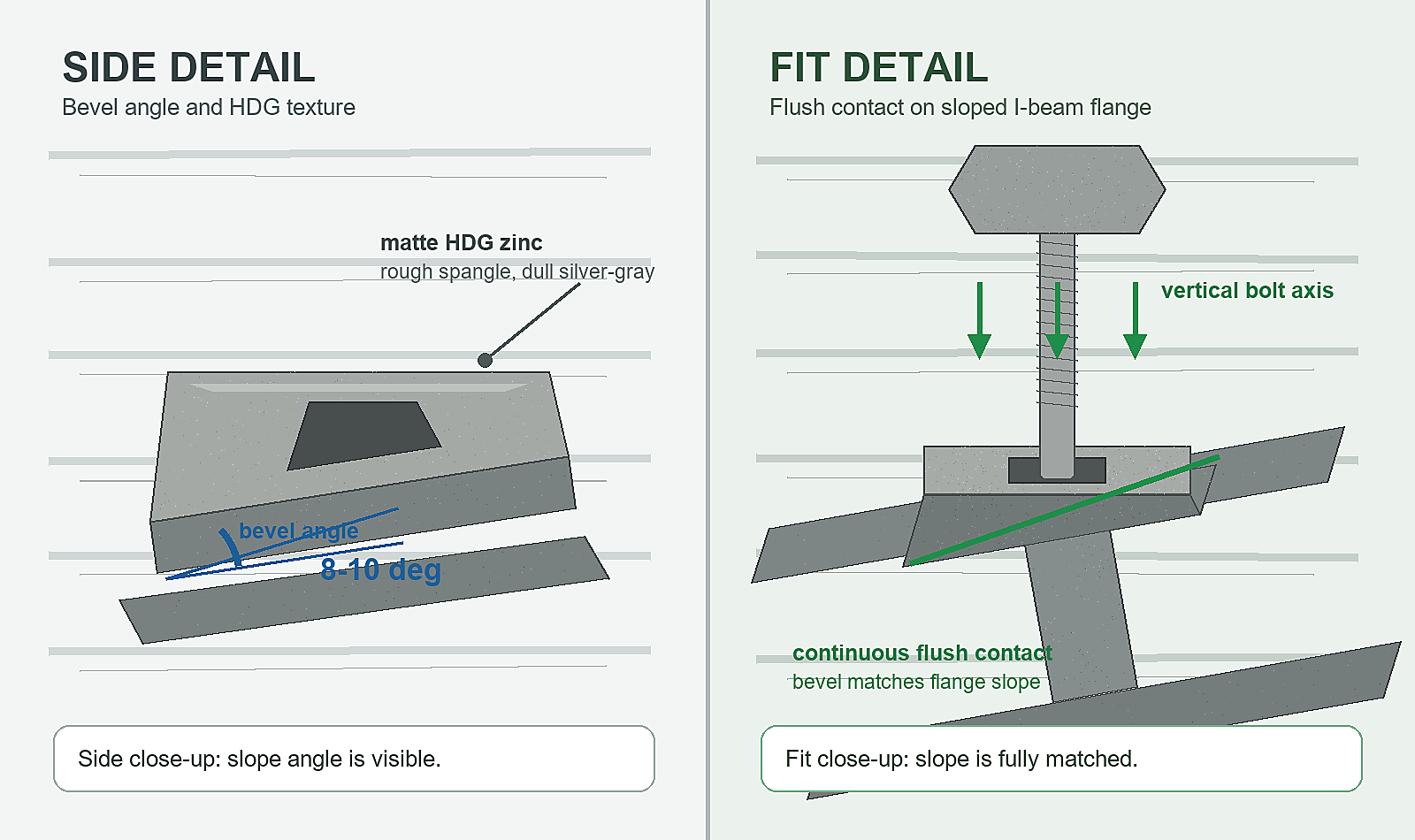

1. Confirm the Washer Slope

The most important feature of a beveled washer is the slope.

Different steel profiles may have different flange or web angles. If the washer slope does not match the steel surface, the washer may not seat correctly. This can reduce the benefit of using a beveled washer.

Buyers should confirm:

• Required bevel angle
• Steel profile type
• Installation surface
• Whether the washer is used under the bolt head or under the nut
• Whether one washer or two washers are required in the assembly

If the buyer is not sure about the angle, it is useful to provide the steel profile drawing, installation photo, or project specification.

2. Check Hole Size and Bolt Diameter

The hole size must match the bolt diameter and project requirement. If the hole is too small, the bolt cannot pass through smoothly. If the hole is too large, the washer may not provide proper bearing support.

Buyers should confirm:

• Bolt diameter
• Washer hole diameter
• Standard hole or oversized hole
• Slot hole application if any
• Bolt standard and grade

For example, washers used with M16, M20, M24, or 1/2 inch, 5/8 inch, 3/4 inch bolts may require different hole sizes. Buyers should not only provide the outside size of the washer. The hole size is equally important.

3. Confirm Thickness and Square Size

Square beveled washers are used to support load and improve seating on structural steel. The thickness and outside size should match the bolt size and connection requirement.

Buyers should check:

• Washer outside square size
• Minimum thickness
• Maximum thickness
• Beveled thickness difference
• Bearing area requirement
• Project drawing or standard

A washer that is too thin may not provide enough support. A washer that is too large may not fit the available space on the steel profile. For structural connections, buyers should follow the project specification or engineering drawing.

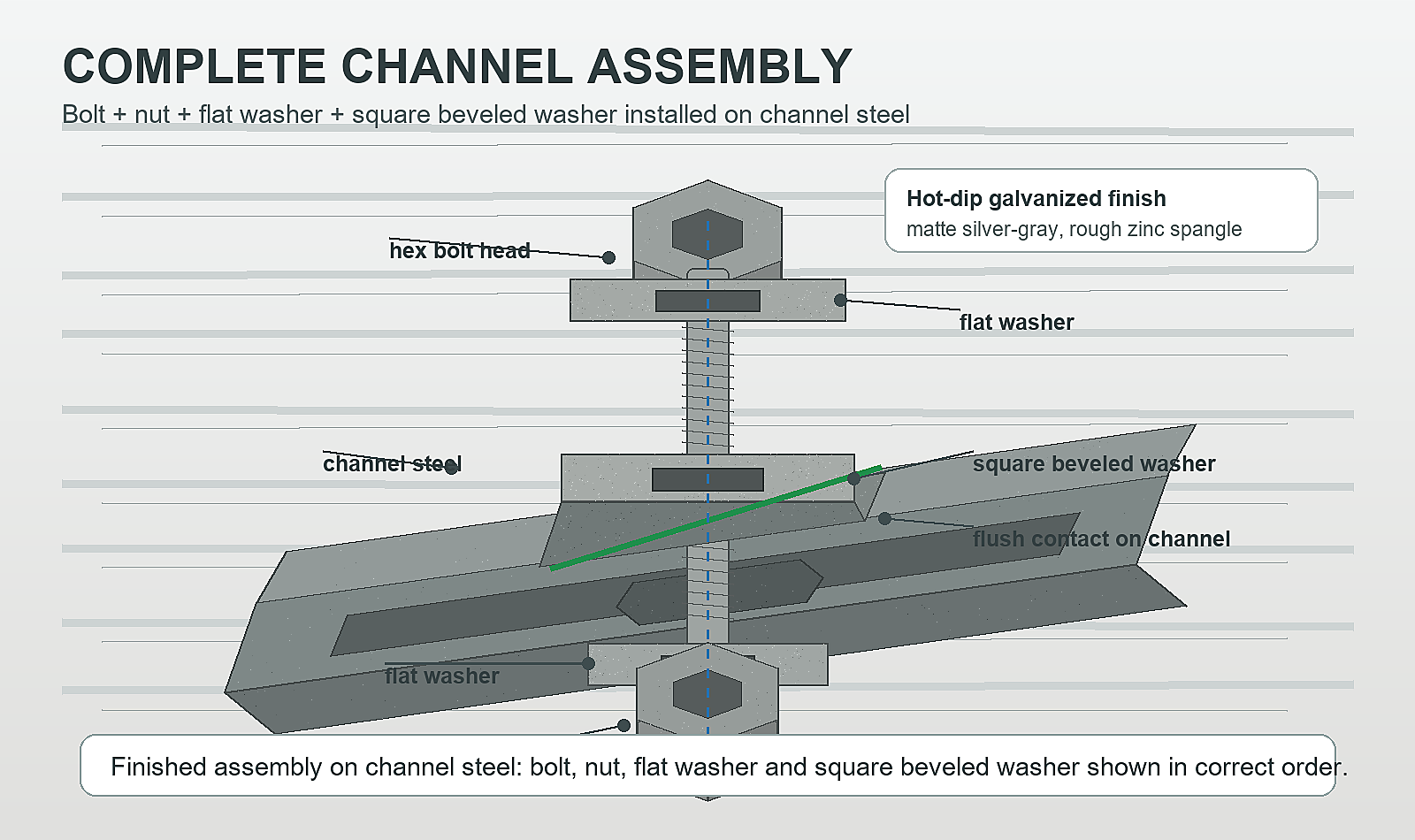

4. Match the Correct Bolts and Nuts

Beveled washers are usually part of a bolted assembly. The complete set may include bolts, nuts, flat washers, and beveled washers.

Buyers should confirm:

• Bolt type
• Bolt diameter and length
• Nut type
• Whether flat washers are also required
• Whether all parts need hot dip galvanizing
• Whether the bolt length allows for washer thickness
• Whether the assembly is installed on one side or both sides of the steel member

Washer thickness can affect the required bolt length. If the buyer changes from a flat washer to a beveled washer, the bolt length may need to be checked again.

5. Confirm the Surface Treatment

For outdoor steel structures, hot dip galvanized square beveled washers are commonly used because of their corrosion resistance.

However, buyers should clearly state the required surface treatment in the inquiry. “Galvanized washer” may refer to different finishes, such as zinc plated or hot dip galvanized.

Buyers should confirm:

• Hot dip galvanized or zinc plated
• Required coating thickness if specified
• Whether bolts and nuts need the same coating
• Application environment
• Any project coating standard

Hot dip galvanized washers may have a matte gray surface and may look less bright than zinc plated washers. This appearance is normal for HDG products and does not mean poor quality.

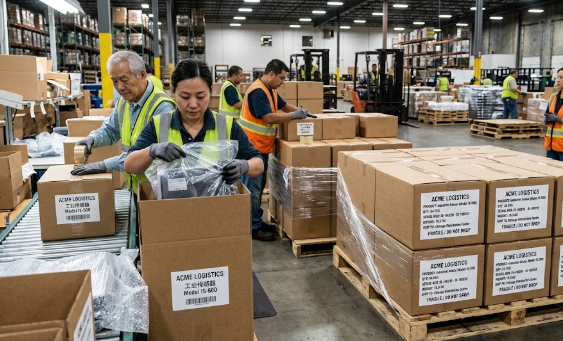

6. Check Packing for Bulk Orders

Square beveled washers are often heavy, especially in larger sizes. Proper packing helps avoid damage, mixed sizes, moisture problems, and counting mistakes.

Buyers should confirm:

• Pieces per box or bag
• Carton or woven bag packing
• Pallet packing
• Label requirements
• Mixed-size packing or separate packing
• Moisture protection for sea shipment
• Whether washers are packed with bolts and nuts as a set

For importers and distributors, clear labels are important for warehouse management and resale. For project buyers, organized packing helps workers find the correct size faster on site.

Common Mistakes When Ordering Beveled Washers

Some issues happen because the washer is treated like a normal flat washer. In real structural applications, beveled washers need more careful confirmation.

Common mistakes include:

• Only providing bolt size without washer dimensions
• Not confirming the required bevel angle

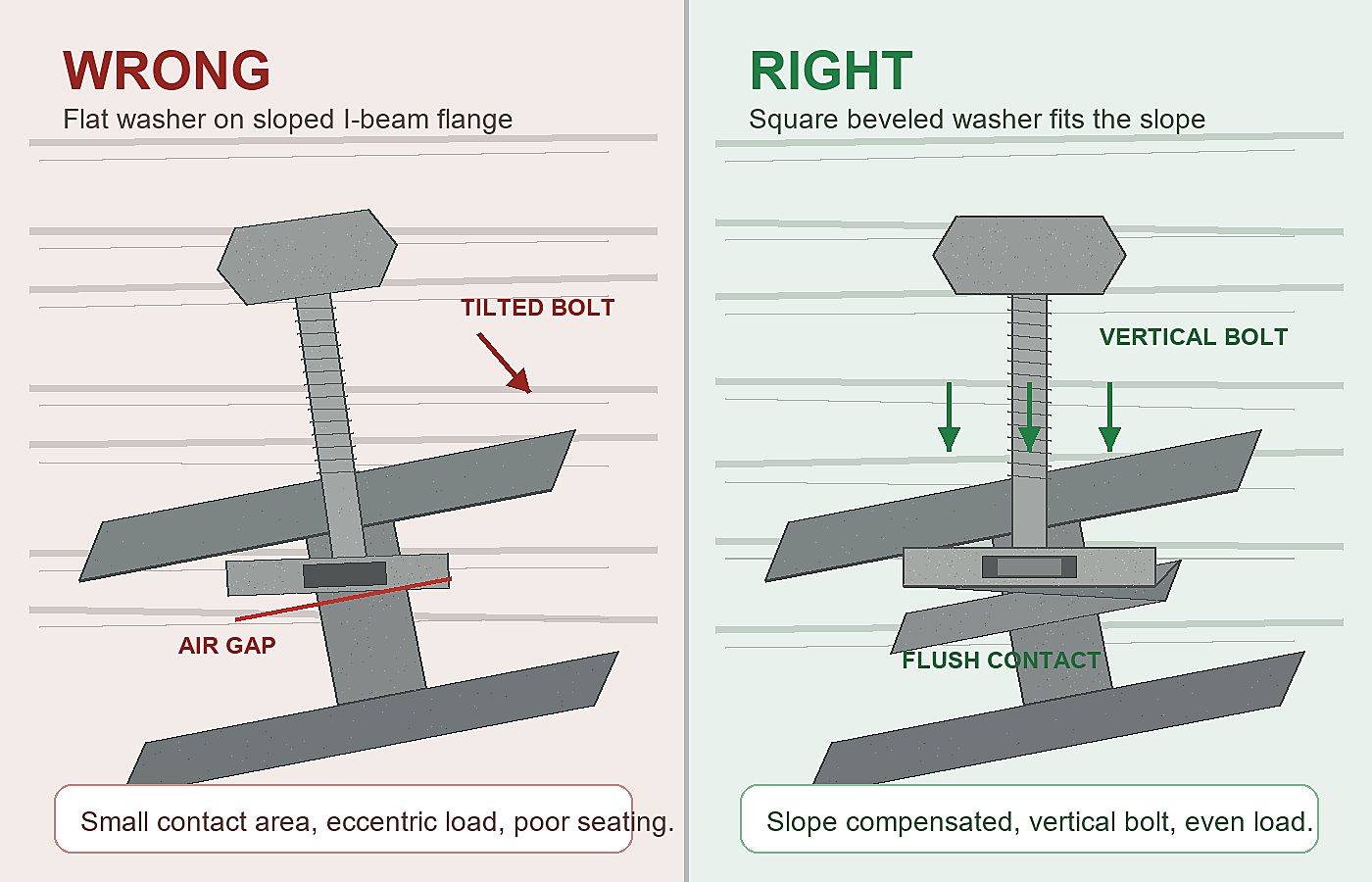

• Using flat washers on sloped steel surfaces
• Ignoring washer thickness when calculating bolt length
• Ordering zinc plated washers for outdoor structures
• Mixing different washer sizes without clear labels
• Not checking whether the washer fits the steel profile
• Asking for “square washer” when a beveled washer is actually needed

These mistakes can cause installation delays, poor fit, or repeated communication before production.

What Buyers Should Provide Before Quoting

To receive an accurate quotation, buyers should provide clear information at the beginning.

A useful inquiry for HDG square beveled washers should include:

• Washer type: square beveled washer
• Outside square size
• Hole diameter
• Thickness range
• Bevel angle or slope
• Bolt size
• Material or standard
• Surface treatment: hot dip galvanized
• Quantity
• Packing requirement
• Application: I-beam, channel steel, bridge, steel structure, etc.
• Drawing, sample photo, or steel profile information if available

If the buyer is not sure about the exact washer, photos of the installation position can help the supplier understand the requirement.

Conclusion

Hot dip galvanized square beveled washers are useful for bolted connections on I-beams, channel steel, and other sloped structural surfaces. They help the bolt head or nut seat more evenly and provide better support than a normal flat washer in these applications.

Before bulk ordering, buyers should confirm the bevel angle, hole size, thickness, square size, bolt matching, surface treatment, application environment, and packing details. Clear specifications help avoid wrong parts and installation problems.

If you are sourcing hot dip galvanized square beveled washers, bolts, nuts, or complete structural fastener sets, please send us your washer size, hole diameter, bevel angle, bolt size, quantity, drawing or sample photo.

Our team can help check the suitable fastener solution for your steel structure project.
