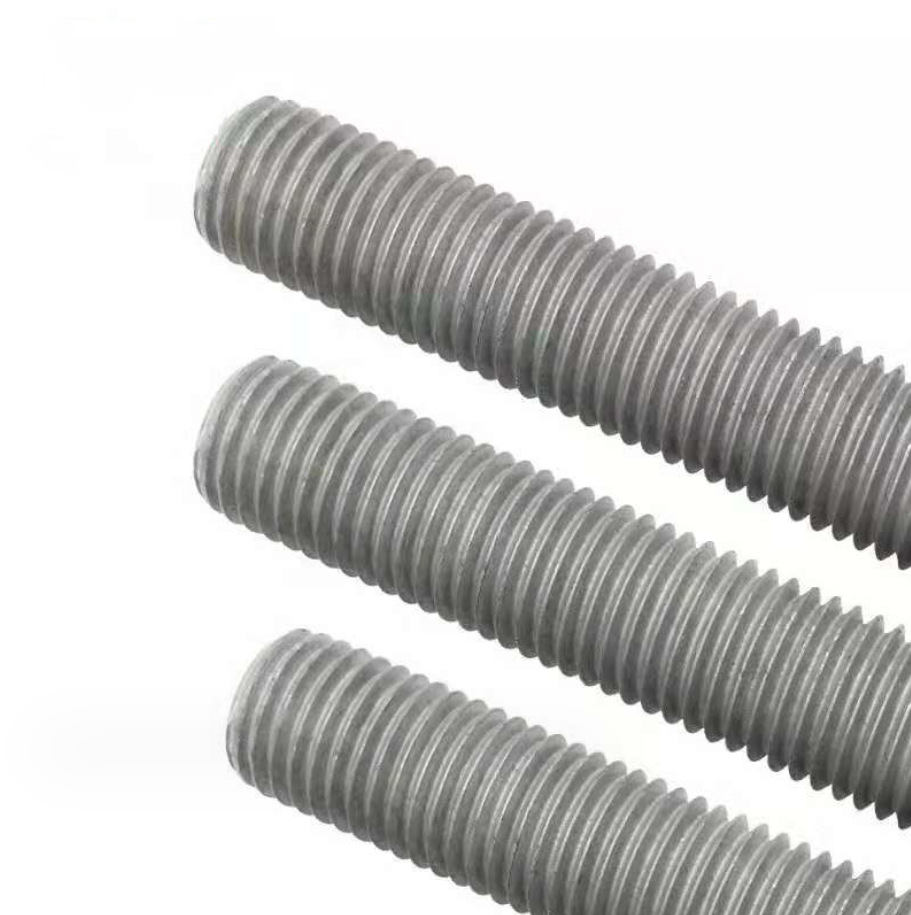

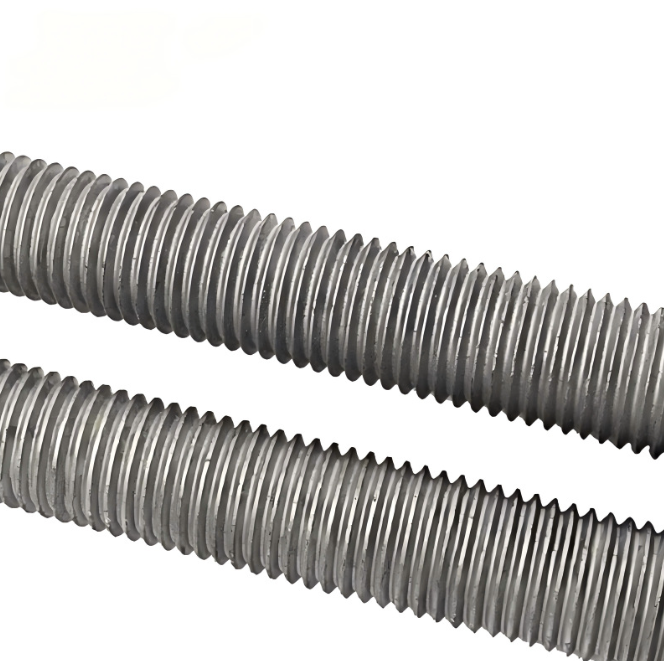

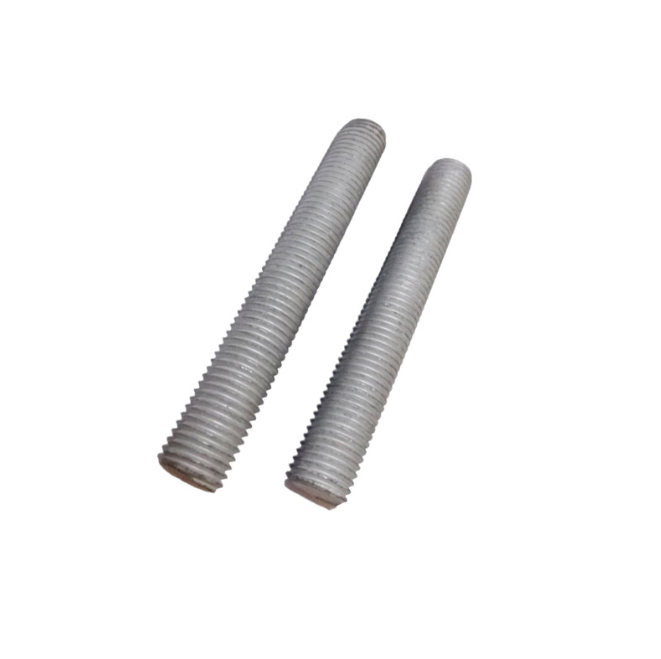

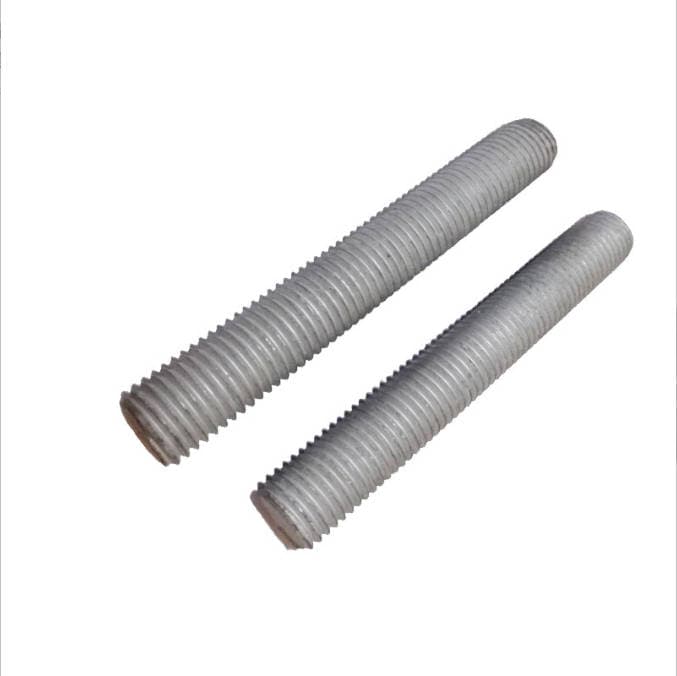

What Are Hot Dip Galvanized Threaded Rods?

A threaded rod is a long steel rod with continuous threading along the body. It is also called an all thread rod, full threaded rod or threaded stud. Hot dip galvanized threaded rods are coated with zinc through a hot dip galvanizing process to improve corrosion resistance. They are more suitable for outdoor and exposed environments than plain steel or ordinary zinc plated rods. They are commonly used with:

• Hex nuts
• Heavy hex nuts
• Flat washers
• Spring washers
• Pipe clamps
• Brackets
• Anchor plates
• Base plates
• Couplers
• Steel frames

Because the thread runs along the full length, the rod can be cut, adjusted and combined with nuts and washers to meet different installation conditions.

Where Are Hot Dip Galvanized Threaded Rods Used?

Steel Structure Projects

Threaded rods are used in steel buildings, industrial platforms, warehouses, brackets, frames and support systems. They can help fix, hang, connect or adjust structural components.

Pipe Support Systems

Pipe supports and pipe hangers often use threaded rods to suspend or fix pipes. For outdoor pipelines, industrial plants and humid environments, hot dip galvanizing provides better corrosion protection.

Solar Mounting Systems

Solar mounting structures are exposed to outdoor weather for many years. Threaded rods can be used in ground mounting systems, roof brackets, adjustable supports and connection points.

Anchor Assemblies

Threaded rods are often used with nuts, washers and plates in anchor assemblies. They can be used for base plates, equipment foundations, columns and concrete fixing systems.

Mechanical and Electrical Installation

In HVAC, electrical and mechanical installation, threaded rods are used for hanging cable trays, ducts, pipe systems, equipment frames and support brackets.

Agricultural and Outdoor Equipment

Greenhouse structures, livestock equipment, fencing systems and outdoor machinery may use threaded rods where corrosion resistance and adjustability are needed.

Why Choose Hot Dip Galvanized Threaded Rods?

Better Protection for Outdoor Use

Threaded rods often have large exposed surfaces and continuous threads. In outdoor environments, corrosion can affect both appearance and function. Hot dip galvanized threaded rods are suitable for applications exposed to rain, humidity, soil contact, industrial air and changing weather conditions.

Flexible Installation

Because the rod is fully threaded, installers can adjust nut positions and cut the rod to different lengths when needed. This makes threaded rods useful in projects where exact installation height or connection length may vary.

Suitable for Complete Assemblies

Threaded rods are rarely used alone. Buyers usually need nuts, washers, plates or pipe clamps together. A supplier that can provide the full set can reduce matching problems and procurement time.

Useful for Bulk and Project-Based Orders

Threaded rods are frequently purchased in bulk for construction, pipe support, solar mounting and industrial projects. Standard and custom packaging can help make warehouse management easier.

Hot Dip Galvanized vs Zinc Plated Threaded Rods

Both hot dip galvanized and zinc plated threaded rods use zinc to protect steel, but they are not the same. Zinc plated threaded rods usually have a thinner and smoother coating. They are often used for indoor applications, light-duty assemblies and situations where appearance or tight dimensional control is important. Hot dip galvanized threaded rods usually have a thicker zinc coating. They are more suitable for outdoor applications where the rod may be exposed to rain, humidity or corrosive conditions. For buyers, the key question is not only price. It is the working environment. If the rod is used indoors in a dry environment, zinc plated rods may be enough. If the rod is used outdoors, in a pipe support system, in a solar structure or in a steel construction project, hot dip galvanized rods are usually a better choice.

Thread Fit: A Key Point Buyers Should Not Ignore

Hot dip galvanizing creates a thicker coating than ordinary zinc plating. For threaded products, this means the buyer must pay attention to thread fit. If hot dip galvanized threaded rods and nuts are not properly matched, the nut may not run smoothly on the rod. This can cause installation delays or complaints at the job site. Before ordering, buyers should confirm:

• Thread standard
• Diameter
• Pitch
• Rod length
• Nut type
• Washer requirement
• Surface treatment
• Whether the supplier can provide matching nuts and washers

For project orders, it is usually safer to purchase threaded rods together with matching nuts and washers from the same supplier.

What Information Should Buyers Provide?

To get a fast and accurate quotation, buyers should provide the following details.

1.Diameter

Common metric sizes include M8, M10, M12, M16, M20, M24 and larger sizes. Inch sizes can also be required in some markets.

2.Length

Standard lengths may include 1 meter, 2 meters and 3 meters. Some projects need custom cutting or special lengths.

3.Thread Type

Metric, UNC, UNF, BSW or other thread types should be clearly confirmed.

4.Material and Grade

Carbon steel is common, but the required grade depends on the project. Structural or load-bearing applications should follow the project specification.

5.Surface Treatment

If hot dip galvanizing is required, buyers should clearly write “hot dip galvanized” or “HDG” instead of only writing “galvanized.”

6.Matching Accessories

Nuts, flat washers, spring washers, plates, couplers and brackets may be required together with threaded rods.

7.Application Environment

The supplier should know whether the rods will be used in steel structures, pipe supports, solar systems, agricultural equipment, coastal areas or general outdoor construction.

8.Packaging

Long threaded rods need proper packaging to reduce bending, thread damage and moisture-related problems during shipment.

Common Packaging Options

Threaded rods are long and can be heavy in bulk, so packaging matters. Common packaging options include:

• Bundles
• Cartons
• Pallets
• Wooden cases
• Plastic wrapping
• Custom labels
• Mixed packing with nuts and washers
• Export-ready sea shipment packing

For long-distance export orders, strong pallet packing or wooden case packing is usually recommended.

Common Buyer Mistakes

Mistake 1: Only Asking for “Galvanized Threaded Rod”

The word “galvanized” can mean zinc plated, hot dip galvanized or another zinc-based coating. Buyers should specify the surface treatment clearly.

Mistake 2: Ignoring Thread Compatibility

Threaded rods and nuts must be matched properly. This is especially important for hot dip galvanized products.

Mistake 3: Not Confirming Length Tolerance or Cutting Requirement

If the project needs exact cut lengths, the buyer should confirm this before production or shipment.

Mistake 4: Buying Rods Without Matching Accessories

Missing nuts, washers or plates can delay installation. For project orders, complete assembly supply is often more efficient.

Mistake 5: Choosing Only by Unit Price

A cheaper rod may not meet the required coating, thread, straightness, packaging or project standard.

How to Choose a Reliable Supplier

A reliable supplier should help buyers confirm not only the product name, but also the actual working requirement. Before placing an order, buyers can check whether the supplier can support:

• Standard and custom sizes
• Hot dip galvanized surface treatment
• Matching nuts and washers
• Thread fit checking
• Export packing
• Bulk order handling
• Drawing-based requirements
• Project list supply
• Photos or inspection before shipment

For buyers working on steel structure, solar mounting, pipe support or infrastructure projects, supplier communication and product matching are very important.

Conclusion

Hot dip galvanized threaded rods are practical and important fasteners for outdoor construction, steel structures, pipe supports, solar mounting systems and anchor assemblies. The right product should be selected based on diameter, length, thread type, material grade, coating, matching accessories, packaging and working environment. For outdoor projects, hot dip galvanized threaded rods can provide better corrosion protection than ordinary zinc plated threaded rods. For project procurement, purchasing threaded rods together with matching nuts and washers can reduce installation risk and improve efficiency.
